Premium Smoothing Plane With Quick Adjuster

Add to Enquiry Bag

Enquire Now

Features

Polished lever cap with quick brass adjuster

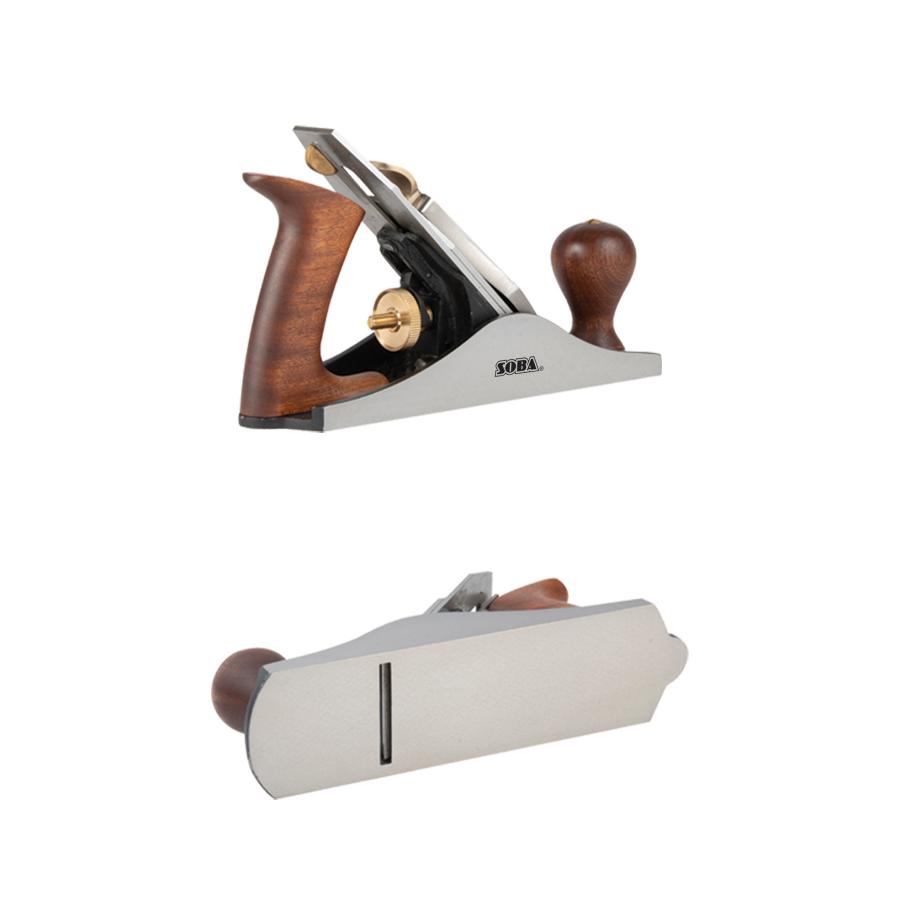

The SOBA Bench Hand Plane. The  features include soles and sides that are machined flat and Ground, lightly finished hardwood handles It features a heavy, stress-relieved ductile iron castings, fully machined adjustable frogs, and high carbon steel blades. Premium Hand  planes based on Bailey Design are offered with 3 mm thick blades, these are made of High carbon steel blades are  hardened and ground . Each blade hardness is checked before fitting on the hand plane.

The Mechanism requires the removal of frog, cap iron and cutting iron to reduce mouth opening, the frogs are machined. Frogs can be replaced in case there is damage to them while fittings.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Plane No. ORD No. Total Length Blade Width Blade WT.
  INCH MM INCH MM Ordering No. Kg
#1 270041 5.3/4 145 1.3/16 30 250039 0.58
#3 270051 9.1/2 240 1.3/4 45 250049 1.8
#4 270056 10 250 2 50 250054 2
#4.1/2 270061 10.1/4 258 2.3/8 60 250069 2.5
#5 270066 14 350 2 50 250054 2.6
#5.1/2 270071 14.3/4 370 2.3/8 60 250069 3.2
#6 270076 18 450 2.3/8 60 250069 3.6
#7 270081 22 550 2.3/8 60 250069 3.9
#8 270086 24 600 2.3/8 60 250069 4.2
