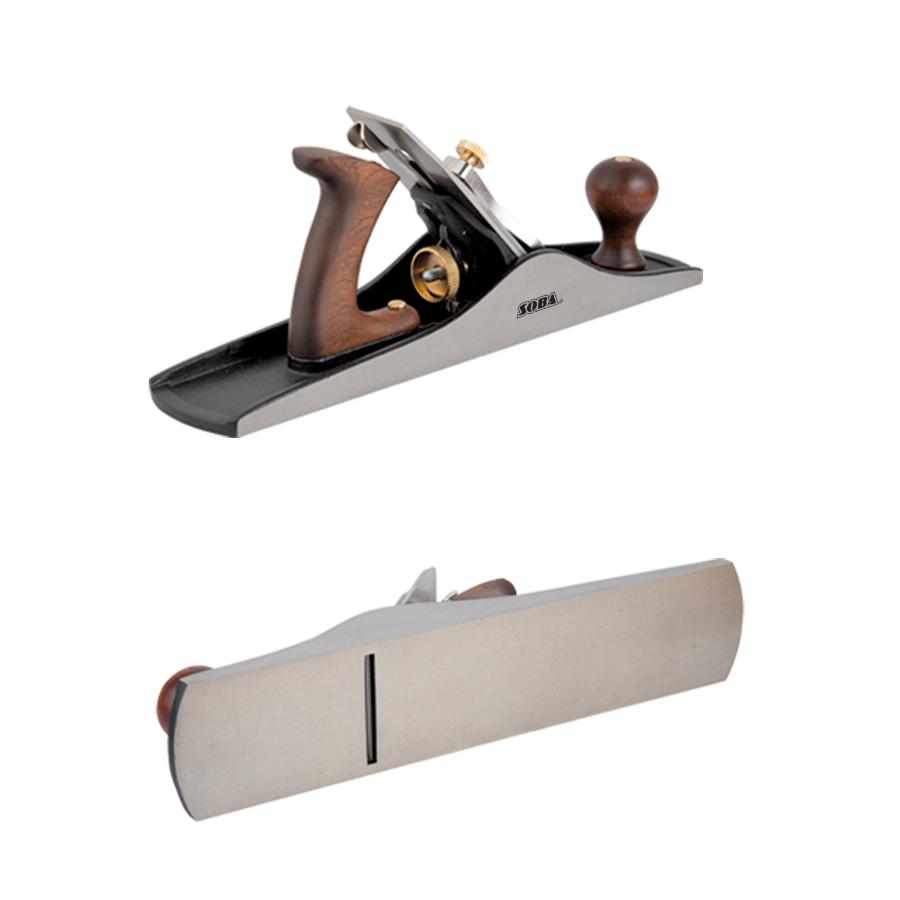

Premium Smoothing Plane With Brass lever cap

Add to Enquiry Bag

Enquire Now

Features

With brass lever cap and brass thumb screws.
The SOBA Bench Hand Plane. The  features include soles and sides that are machined flat and Ground, lightly finished hardwood handles.

It features a heavy, stress-relieved ductile iron castings, fully machined adjustable frogs, and high carbon steel blades.

Premium Hand  planes based on Bailey Design are offered with 3 mm thick blades, these are made of High carbon steel blades are  hardened and ground . Each blade hardness is checked before fitting on the hand plane.

The Mechanism requires the removal of frog, cap iron and cutting iron to reduce mouth opening, the frogs are machined. Frogs can be replaced in case there is damage to them while fittings.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Plane No. ORD No. Total Length Blade Width Blade WT.
  INCH MM INCH MM Ordering No. Kg
#3 250050 9.1/2 240 1.3/4 45 250049 1.8
#4 250055 10 250 2 50 250054 2
#4.1/2 250060 10.1/4 258 2.3/8 60 250069 2.5
#5 250065 14 350 2 50 250054 2.6
#5.1/2 250080 14.1/4 370 2.3/8 60 250069 3.2
#6 250070 18 450 2.3/8 60 250069 3.6
#7 250075 22 550 2.3/8 60 250069 3.9
#8 250082 24 600 2.3/8 60 250069 4.2
