Smoothing Plane Standard Bailey Planes

Add to Enquiry Bag

Enquire Now

Features

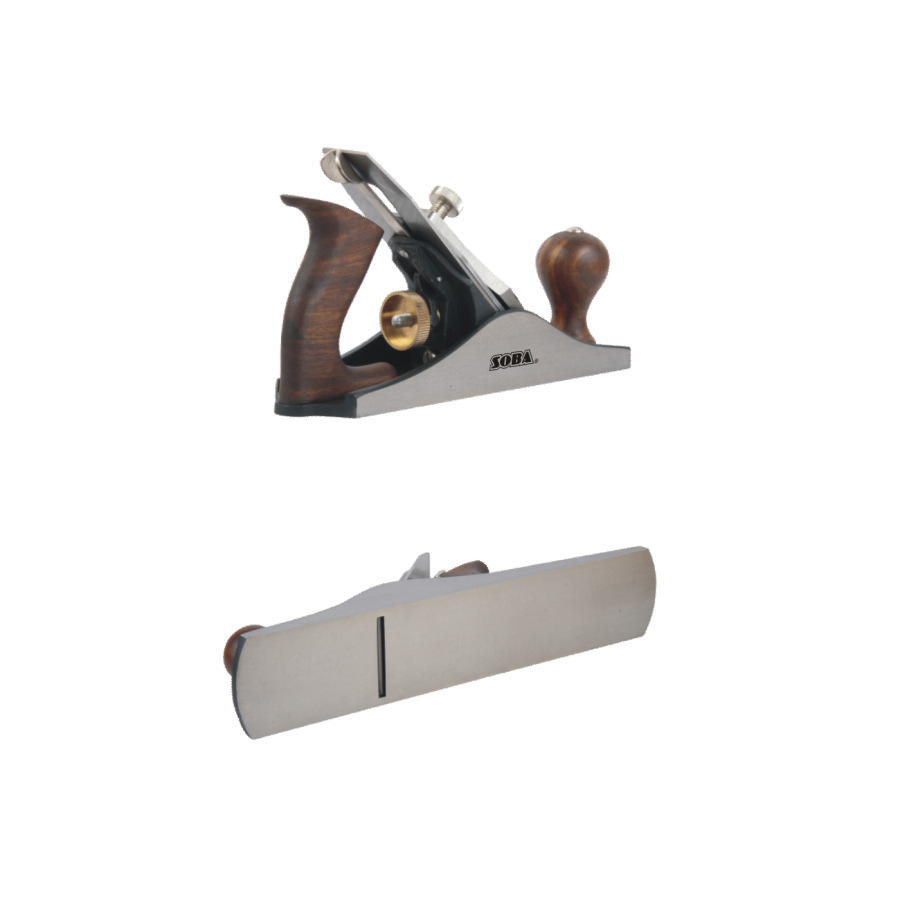

The SOBA Bench Hand Plane is a jack plane . The  features include soles and sides that are machined flat and Ground , lightly finished hardwood handles Grey cast iron body and frog .

Standard Bailey planes are offered with 2 mm thick blades for standard Hand Planes , these are carbon steel blades which  hardened and Ground finish. Frog screws are made of regular steel , nickel plated. The mechanism requires the removal of frog, cap iron and cutting iron to reduce mouth opening .

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Plane No. ORD No. Total Length Blade Width Blade WT.
  INCH MM INCH MM Ordering No. Kg
#3 260050 9.1/2 240 1.3/4 45 260049 1.75
#4 260055 10 250 2 50 260054 2
#4.1/2 260058 10.1/4 258 2.3/8 60 260069 2.5
#5 260060 14 350 2 50 260054 2.6
#5.1/2 260070 14.3/4 370 2.3/8 60 260069 3.1
#6 260062 18 450 2.3/8 60 260069 3.5
#7 260065 22 550 2.3/8 60 260069 3.8
#8 260082 24 600 2.3/8 60 260069 4
