Precision Squares

Add to Enquiry Bag

Enquire Now

Features

All squares are precision ground. Beams and blades are ground for parallelism, squareness of both the edges of the blade is maintained with both the faces of the stock.

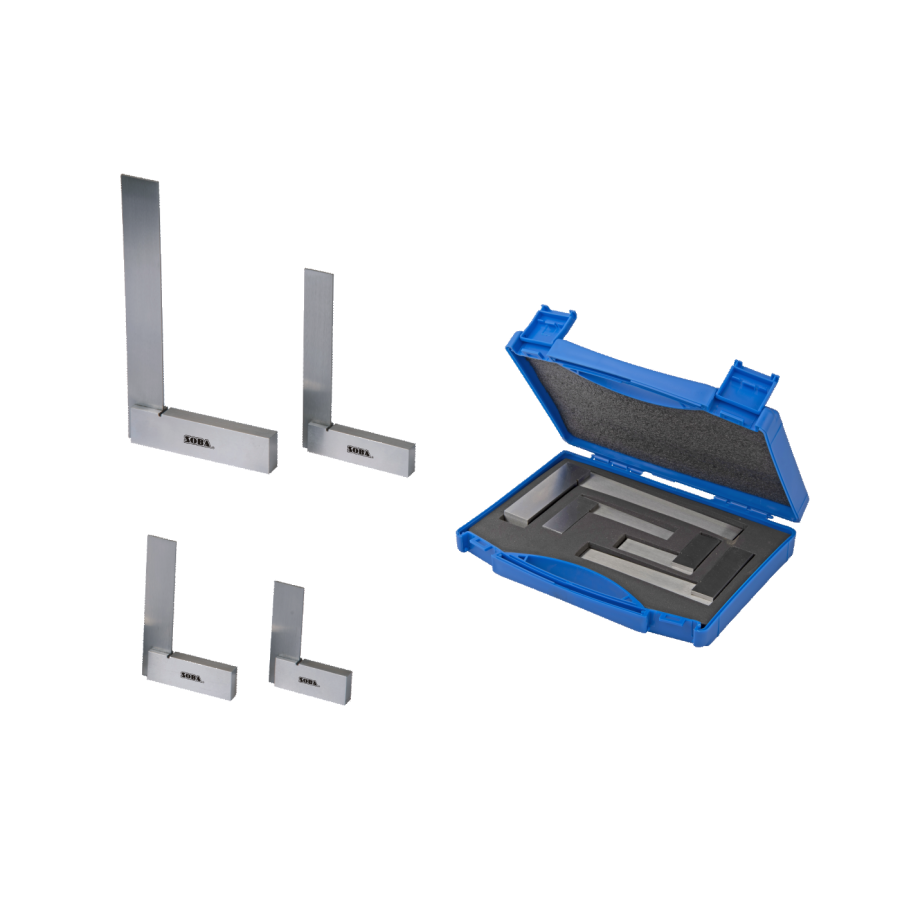

PRECISION SQUARE SETS
•  Set No. 150667 Set of 4 Pcs.  (150600, 150605, 150610, 150620)
• Set No. 150668 Set of 3 Pcs.  (150600, 150610, 150620)
•  Set No. 150669  Set  of 3 Pcs. (150610, 150620, 150625)

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. I B C D E Squareness Flatness/Parallelism WT.
BS939   WG INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM Stock Faces Blade Edges Kg
INCH MM INCH MM
150600   150599 2 50 2 50 3/4 19 3/8 9.5 1/16 1.6 .0002 0.005 .0001 0.003 .0002 0.005 0.10
150605   150604 3 75 2-3/8 60 3/4 19 3/8 9.5 1/16 1.6 .0002 0.005 .0001 0.003 .0002 0.005 0.13
150610   150609 4 100 3 75 3/4 19 3/8 9.5 1/16 1.6 .0002 0.005 .0001 0.003 .0002 0.005 0.15
150615   150614 5 125 4 100 3/4 19 3/8 9.5 1/16 1.6 .0004 0.010 .0001 0.003 .0002 0.005 0.18
150620   150619 6 150 4 100 1 25 7/16 11.5 1/16 1.6 .0004 0.010 .0002 0.005 .0002 0.005 0.25
150625   150624 8 200 5 125 1-1/8 28 9/16 14 1/16 1.6 .0004 0.010 .0002 0.005 .0002 0.005 0.30
150630   150629 9 225 5-9/16 140 1-1/2 38 3/4 19 1/8 3.0 .0006 0.015 .0002 0.005 .0003 0.008 1.00
150640   150639 10 250 6-3/16 155 1-1/2 38 3/4 19 1/8 3.0 .0006 0.015 .0003 0.007 .0005 0.012 1.25
150645   150644 12 300 7 175 1-1/2 45 7/8 22 1/8 3.0 .0008 0.020 .0003 0.008 .0006 0.015 2.50
