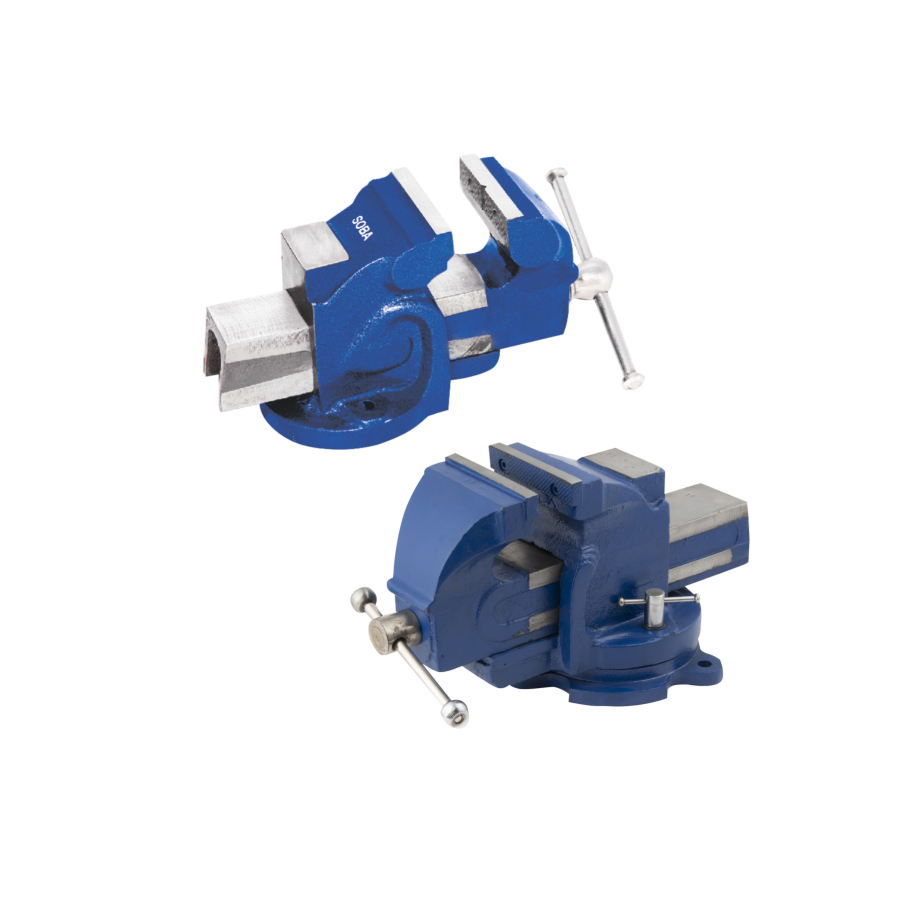

Enquire NowThese Vises are specially designed and manufactured to ensure perfect alignment and smooth movement.
Body : Shock resisting cast iron, free from sand holes, pits, blow holes, scabs and other imperfections.
Spindle Nut : Unbreakable Malleable Steel Nut for extra tuff grip.
Jaw : Made of special carbon Steel properly heat treated grinded and serrated to ensure a fast non slip. Horizontal and vertically 'V' is provided for round section work.
Spindle Screw : Is fine pitched made of selected steel to match with nut for long and durable life.
Suide Pins : Two hardened pins are provided instead of spring for the smooth runningof the vise.
Swivel Base : Specially designed having three hole for mounting. Vise rotates through 360° on base and can be locked positively at any position.
Ordering No. | Ordering No. | Width of Jaws | Opening of Jaws | Depth of Jaws | Overall Height | Overall Length | Net Wt. Kg. | Net Wt. Kg. | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fixed Base | Swivel Base | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Fixed Base | Swivel Base |
110201 | 110810 | 3 | 75 | 3-3/8 | 85 | 2 | 50 | 4-3/4 | 120 | 10-3/16 | 255 | 5 | 6.20 |
110202 | 110811 | 4 | 100 | 5-3/16 | 130 | 2-3/16 | 55 | 5-3/16 | 130 | 13-3/16 | 130 | 9 | 11.20 |
110203 | 110812 | 5 | 125 | 5-3/4 | 145 | 2-3/4 | 70 | 6-3/16 | 155 | 13-3/16 | 380 | 13 | 16.50 |
110204 | 110813 | 6 | 150 | 6-3/8 | 160 | 3-3/16 | 80 | 7 | 175 | 17-3/8 | 435 | 20 | 24.00 |
110205 | 110814 | 8 | 200 | 8-3/8 | 210 | 4 | 100 | 8-3/4 | 220 | 20-9/16 | 515 | 30 | 36.00 |
