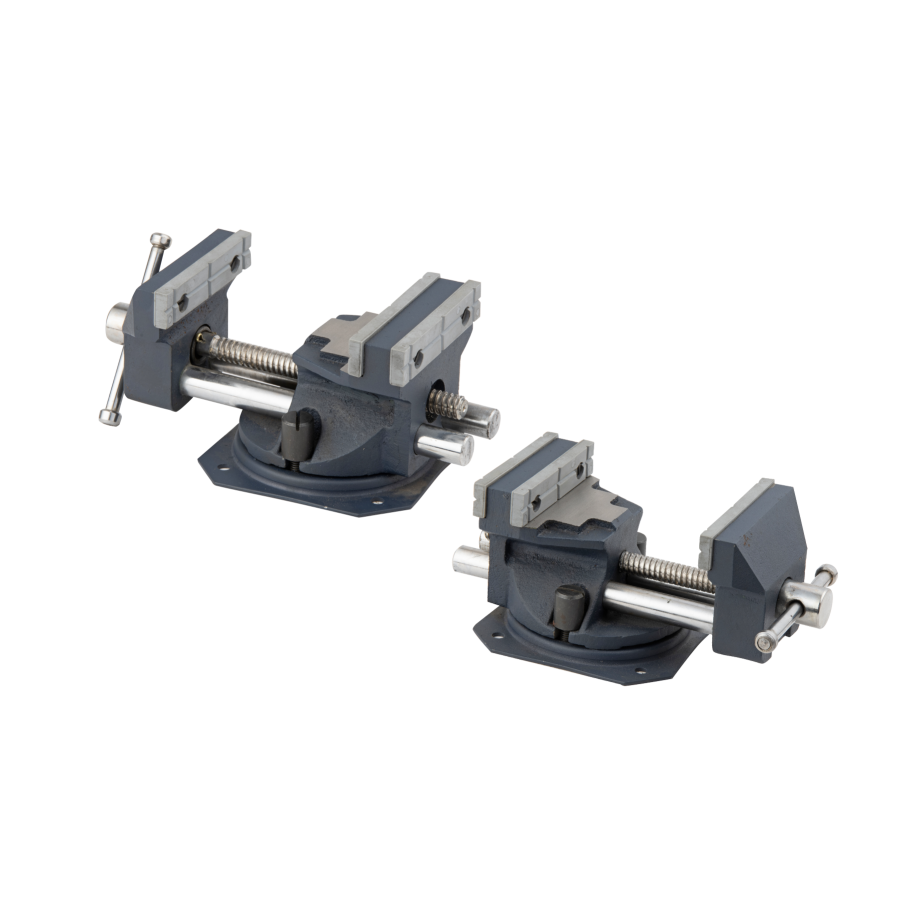

Enquire NowMade of closed grain cast iron the base swivels 360 degrees with Poly propylene jaws for a soft yet firm grip; under pressure the jaws reshape to grip work piece securely and return to their original shape when job is removed. The capacity of the jaws double from 3.1/2” to 7” by repositioning the sliding jaw and placing it at the back of the body.
| Ordering No. | Width of Jaws | Length | Width | Height | Normal Position Jaw Opning |
Reversad Position Jaw Opning |
Shot clamping Distance |
Net Wt. Kg. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | ||
| 110875 | 3.1/2 | 90 | 8.1/4 | 208 | 4.3/4 | 120 | 3.5/8 | 92 | 3.1/2 | 90 | 7 | 180 | 2.3/4 | 71 | 3.00 |
