CHARACTERISTICS
Manufactured from heavy duty close grained high tensile seasoned cast iron with precision rotary head 4 way block made of tool steel. Hardened & Ground Block hardness 55Â±5 HRC.
Parallelism <0.015mm. Tilting adjustment is achieved via angular slide that can be set to any desired angle 45Â° on either side. The 360Â° swivel base allows the vise to be set at any angle along with vertical axis. Jaw block rotates on the axis. The jaw block can hold the circular job vertical & horizontal. Also holds the flat job on flat surface.

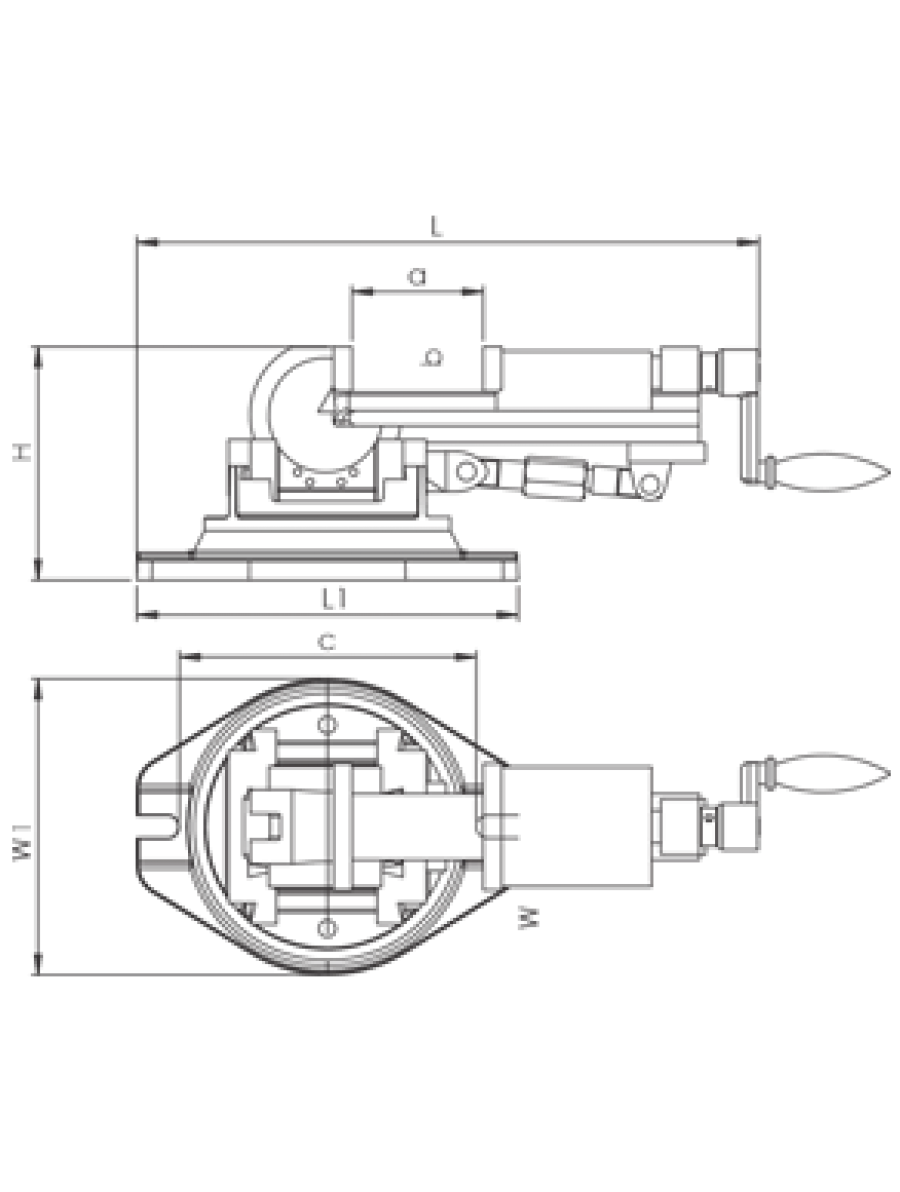

Ordering No.	Length		Height		Jaw Width		Jaw Opening		Throat Depth		Slot Distance		Max. Clamping Force	Base (L1 x W1)		Net Weight Kgs.
	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm		Inch	mm
110951	16	406	6.1/4	159	3.1/8	80	3.7/16	87	1.7/32	31	7.5/8	193	800 kgf	9.3/4 x 7.5/8	248 x 194	16.000
110952	21	535	7.1/2	190	4.5/16	110	4.1/2	115	1.1/2	38	10.1/4	261	1000 kgf	12.1/2 x 9	320 x 225	25.000
110953	22	555	8	204	5.1/8	130	5.3/4	146	2	52	11.1/2	292	1600 kgf	12.13/16 x 9	326 x 250	41.000
