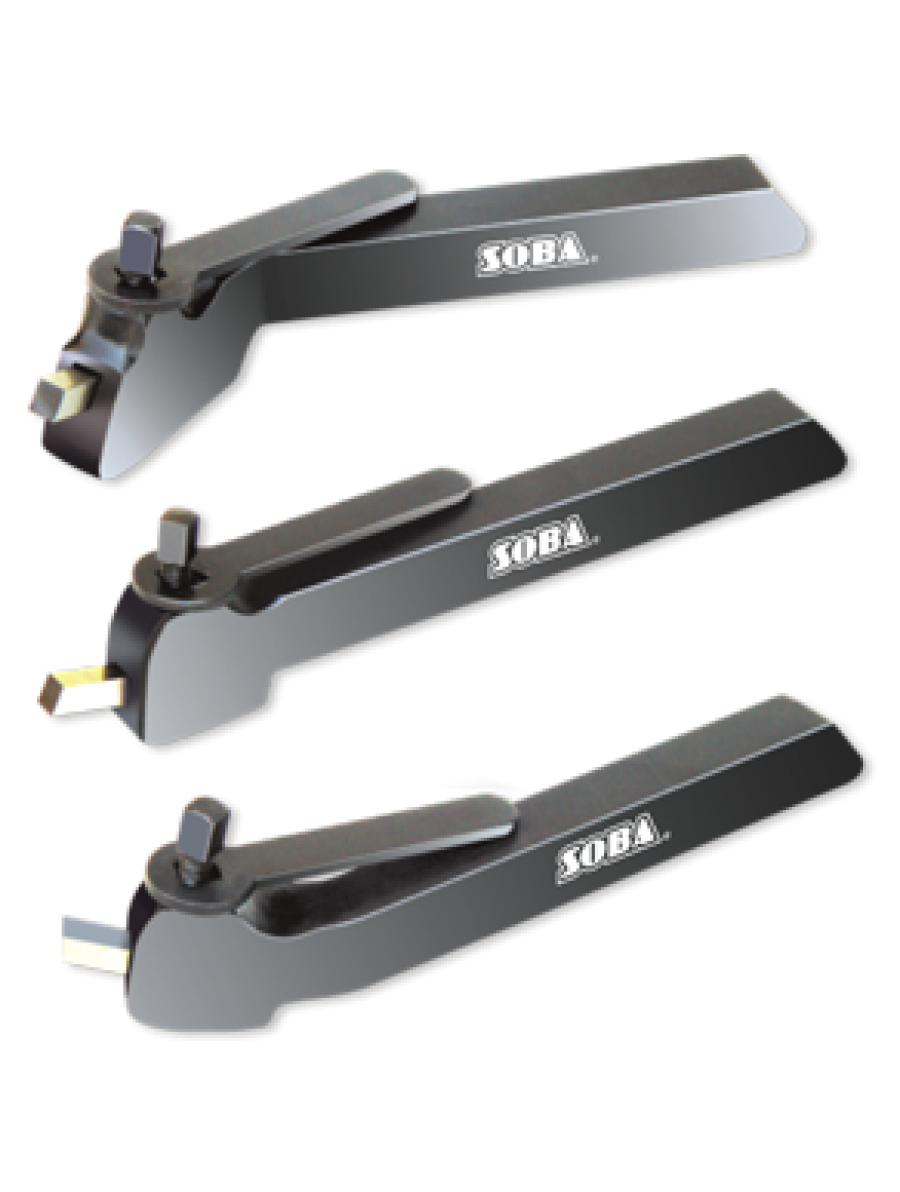

These are used for Holding square tool bits and carbide tool bits. We offer various types of tool holders. Turning tool holders to hold HSS Square tool bits and carbide tool bits. The holders are made of drop forged steel , case hardened and uniformly machined as well as precision ground from top and bottom. The tool bit is inclined at 16° to horizontal for center height adjustment. Holder is supplied with wrench.
English type Turning Tool Holders.

Straight Ordering No.	Right Hand Ordering No.	Left Hand Ordering No.	Size of Holder Straight Right-or Left-Hand	Size of Cutters Square Inch	Height Base to Point Inch
			Inch
392000	392005	392010	1/2 x 9/16 x 4.1/2	3/16	7/16
392020	392025	392030	5/8 x 3/4 x 7.1/2	1/4	11/16
392040	392045	392050	3/4 x 7/8 x 8.1/2	5/16	13/16
392060	392065	392070	7/8 x 1 x 9.1/2	3/8	15/16
392080	392085	392090	1 x 1.1/8 x 10.1/2	7/16	1.1/16
392100	392105	392110	1.1/8 x 1.1/4 x 11.1/2	1/2	1.3/16
