TOOL BITS

Add to Enquiry Bag

Enquire Now

Features

  • Made of a selected Premium quality High Speed Steel, Cobalt Steel precision ground and heat-treated to perfection. For exacting performance of the cutting tool best used with good quality of cutting oils.

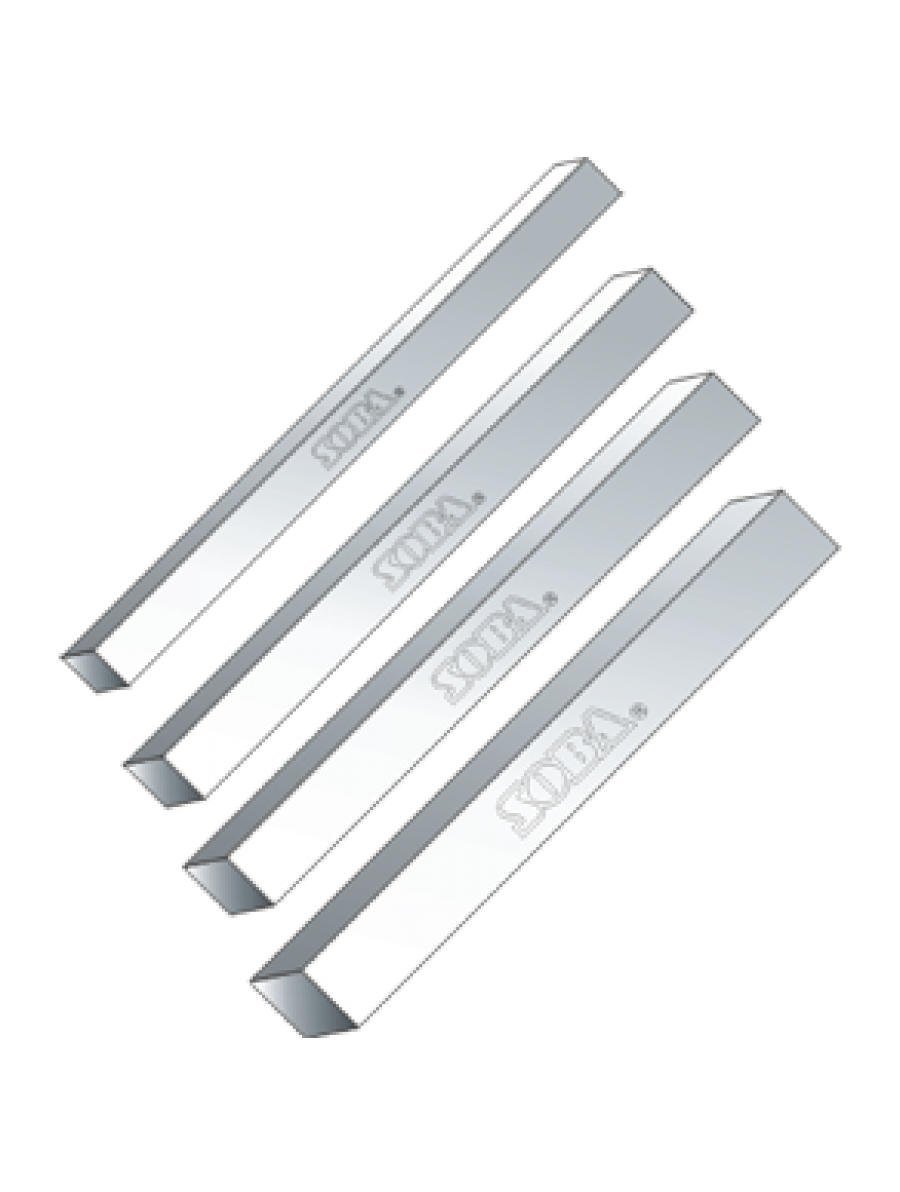

  • Square Tool Bits

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Material M-2 (6.5.2)
(Single-H) Ordering No
Material M-35 (5% Cob)
(Doubl-H) Ordering No.
Size
Inch mm
131500 131900 3/32 x 3 2.5 x 75
131505 131905 3/32 x 4 2.5 x 100
131510 131910 1/8 x 3 3 x 75
131515 131915 1/8 x 4 3 x 100
131520 131920 5/32 x 3 4 x 75
131525 131925 5/32 x 4 4 x 100
131530 131930 3/16 x 3 5 x 75
131535 131935 3/16 x 4 5 x 100
131540 131940 3/16 x 6 5 x 150
131545 131945 1/4 x 3 6 x 75
131550 131950 1/4 x 4 6 x 100
131555 131955 1/4 x 6 6 x 150
131560 131960 5/16 x 3 8 x 75
131565 131965 5/16 x 4 8 x 100
131570 131970 5/16 x 6 8 x 150
131575 131975 3/8 x 3 10 x 75
131580 131980 3/8 x 4 10 x 100
131585 131985 3/8 x 6 10 x 150
131590 131990 1/2 x 3 12 x 75
131595 131995 1/2 x 4 12 x 100
131600 132100 1/2 x 6 12 x 150
131605 132105 5/8 x 4 16 x 100
131610 132110 5/8 x 6 16 x 150
131615 132115 5/8 x 8 16 x 200
131620 132120 3/4 x 4 20 x 100
131625 132125 3/4 x 6 20 x 150
131630 132130 3/4 x 8 20 x 200
131635 132135 1 x 4 25 x 100
131640 132140 1 x 6 25 x 150
131645 132145 1 x 8 25 x 200
