TILTING JAW DRILL PRESS VISES

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTICS
  • Manufactured from graded cast iron Precision milled. The vise has a tilting head that can clamp any non parallel part and automatically equalize the pressure. The jaws have horizontal and vertical grooves for holding round stock. It has a knurled handle which allows quick adjustments and also has a positional bar for applying torque.

Need Expert Advice
-Call us-

+ 91 11 43118888

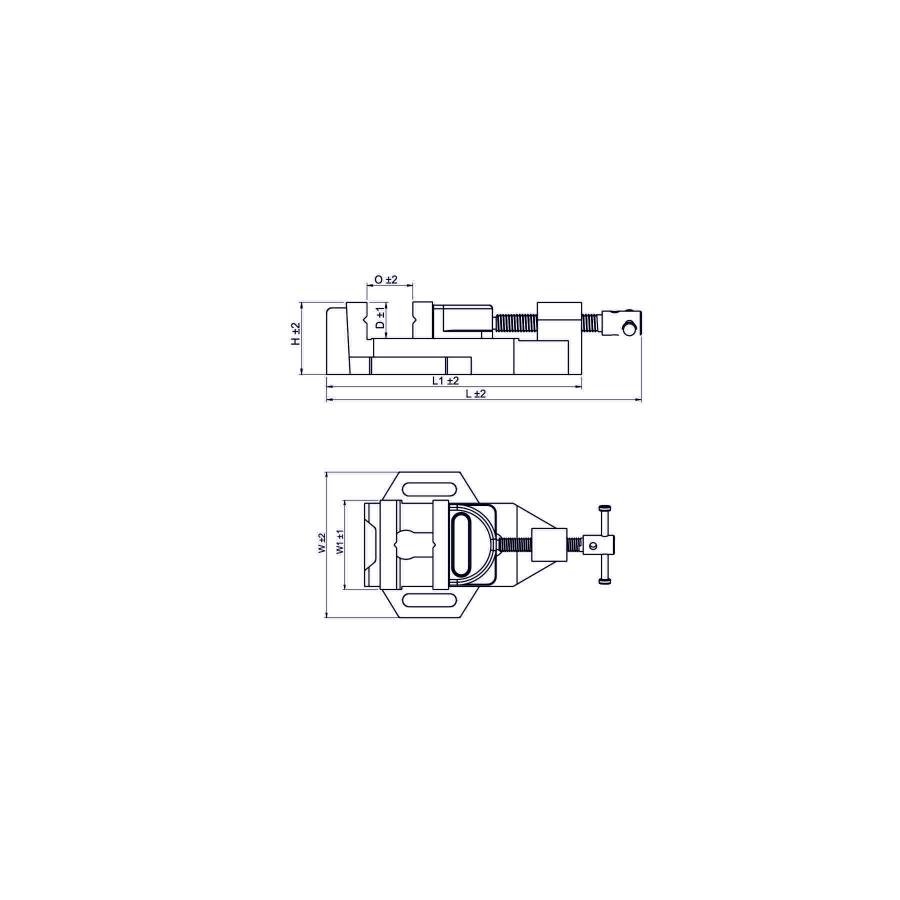

Technical Data

Ordering No. Length Width Height Jaw Width Jaw Opening Jaw Depth Base Length Net Weight
Kgs.
Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
111600 9 225 5 128 2 50 3 76 2.1/2 64 1 25 7.1/4 185 2.3
111650 11.1/8 283 6.9/16 168 2.1/2 63 4 102 3.1/8 80 1.3/16 31 9.1/4 235 5.0
