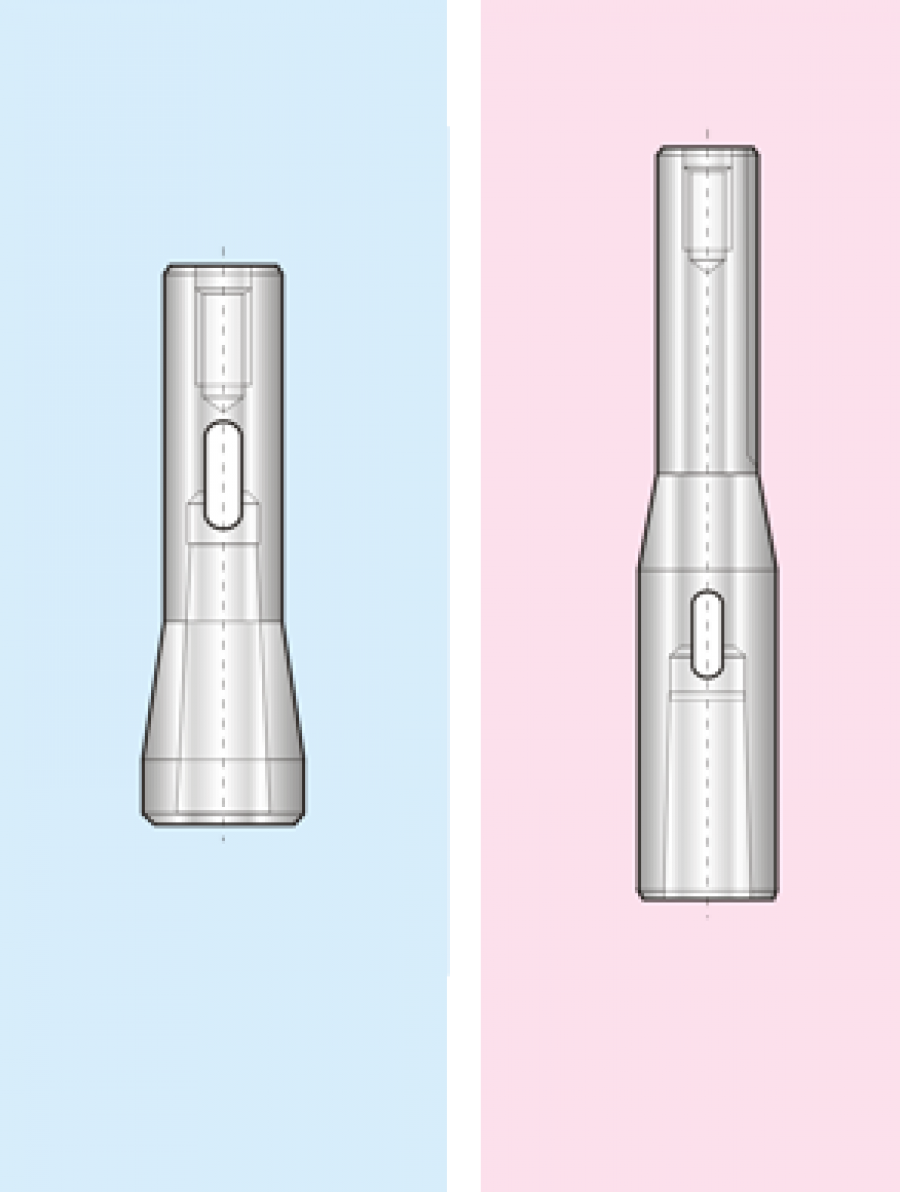

TAPER ADAPTERS

Add to Enquiry Bag

Enquire Now

Features

  • Manufactured to precision from case hardened steel ( 20 Mn Cr5/ SAE 8620 ) to a hardness of 56 +/- 2 HRC . Concentricity within 0.015mm Internal taper as per DIN 228 and external taper R8.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Outside Taper Inside Taper Draw Bar Thread Overall length Inch Overall length mm
200400 R8 MT1 7/16 UNF 5 125
200405 R8 MT2 7/16 UNF 5 125
200410 R8 MT3 7/16 UNF 6 150
200415 ISO30 MT2 1/2 or 12mm 6 150
200420 ISO40 MT3 5/8 or 16mm 6 150
200425 R8 MT4 7/16 UNF 9-3/4 245
