TABLE VISES

Add to Enquiry Bag

Enquire Now

Features

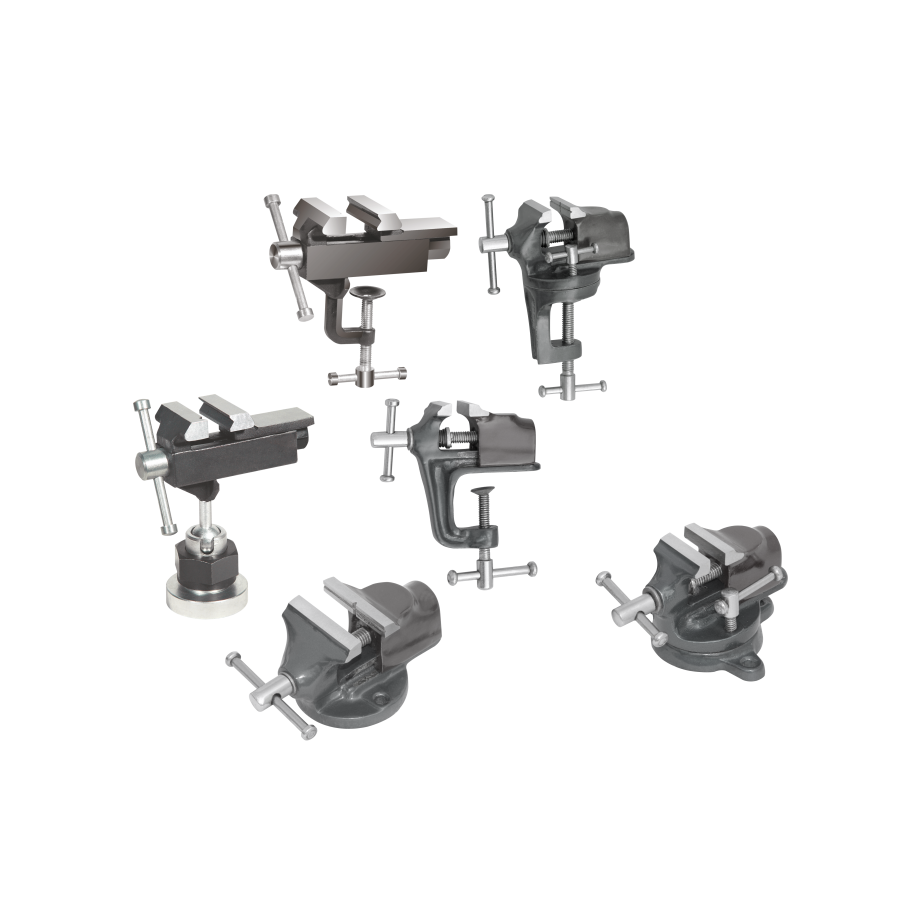

Table Vise.
Manufactured from close grained cast iron. Models available are fixed type with swivel base and clamp type. These vises are mainly used. For D.I.Y.
Table Vise Fixed Clamp / Swivelling Base Table Vise.
Manufactured from alloy steel a small sturdy vise ideal for jobs where small compact and versatile vise is required. A strong G clamp for attachment to bench or table top. The jaws are V grooved horizontal/vertical to facilitate holding of round small diameter jobs. which allows the vise to be tilted or rotated to the desired position. Jaws are V grooved horizontal.vertical to facilitate holding of round small diameter jobs.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Jaw Width Jaw Opening Type Net Weight
Kgs.
Inch mm Inch mm
110191 1.1/4 32 1.1/4 32 Swivelling Base 0.50
110191A 1.1/4 32 1.1/4 32 Fixed Type 0.65
110192 1.1/4 32 1.1/4 32 Swivelling Clamp Type 0.60
110192A 1.1/4 32 1.1/4 32 Fixed Clamp Type 0.80
110193 1.1/2 40 1.1/2 40 Swivelling Base 0.75
110193A 1.1/2 40 1.1/2 40 Fixed Type 1.00
110194 1.1/2 40 1.1/2 40 Swivelling Clamp Type 1.00
110194A 1.1/2 40 1.1/2 40 Fixed Clamp Type 1.00
110195 2 50 2 50 Swivelling Base
110195A 2 50 2 50 Fixed Type
110196 2 50 2 50 Swivelling Clamp Type
110197 2 50 2 50 Fixed Clamp Type
110198 2 50 2 50 Swivelling Type
