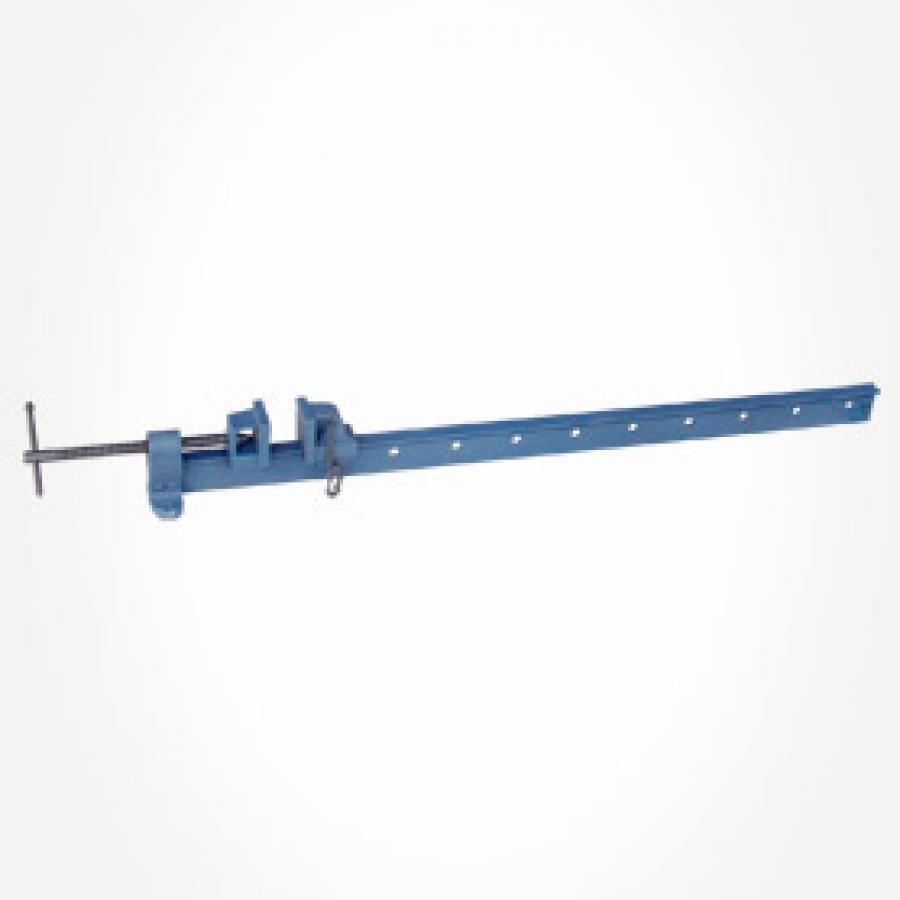

T BAR CLAMP

Add to Enquiry Bag

Enquire Now

Features

T bar clamps Average clamping force of 1000kg (2200lbs). The drilled feet in the fixed head enable the clamp to be mounted to a workbench. The ductile head and slide are unbreakable, whilst the steel bar offers maximum tensile and yield strength. The slightly tapered jaws enable perfectly parallel clamping and the fast action rolled thread applies pressure quickly and smoothly to the workpiece.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No.
Cast Iron
Ordering No.
Steel Grade Iron
Rules Length
Inch mm
112260 112261 36 900
112265 112266 48 1200
112270 112271 60 1500
112275 112276 72 1800
112280 112281 84 2100
