Enquire NowManufactured from close grained casting castings are stress relieved Precision Ground and Hand Scrapped for Accuracy. We offer a wide range of surface plates, which are used in various industries for tool making, inspection, spotting, gauging etc. Our range of surface plates are specifically designed to provide an accurate reference plane for work inspection and also for work layout. These cast iron surface plates are strictly in compliance with international quality standards.
| Product | Ordering No. | Size | Height | ||
|---|---|---|---|---|---|
| Inch | mm | Inch | mm | ||
| Surface Plate | 112100 | 8 x 8 | 200x 200 | 2 | 50 |
| Surface Plate | 112105 | 8 x 12 | 200 x 300 | 2 | 50 |
| Surface Plate | 112110 | 12 x 12 | 300 x 300 | 2 | 50 |
| Surface Plate | 112115 | 12 x 16 | 300 x 400 | 2.5/32 | 54 |
| Surface Plate | 112120 | 12 x 18 | 300 x 450 | 2.3/8 | 60 |
| Surface Plate | 112125 | 16 x 16 | 400 x 400 | 2 | 50 |
| Surface Plate | 112130 | 18 x 18 | 450 x 450 | 2.1/2 | 62 |
| Surface Plate | 112135 | 18 x 24 | 450 x 600 | 3.3/8 | 86 |
| Surface Plate | 112140 | 24 x 24 | 600 x 600 | 3.3/8 | 86 |
| Surface Plate | 112145 | 24 x 36 | 600 x 900 | 6 | 150 |

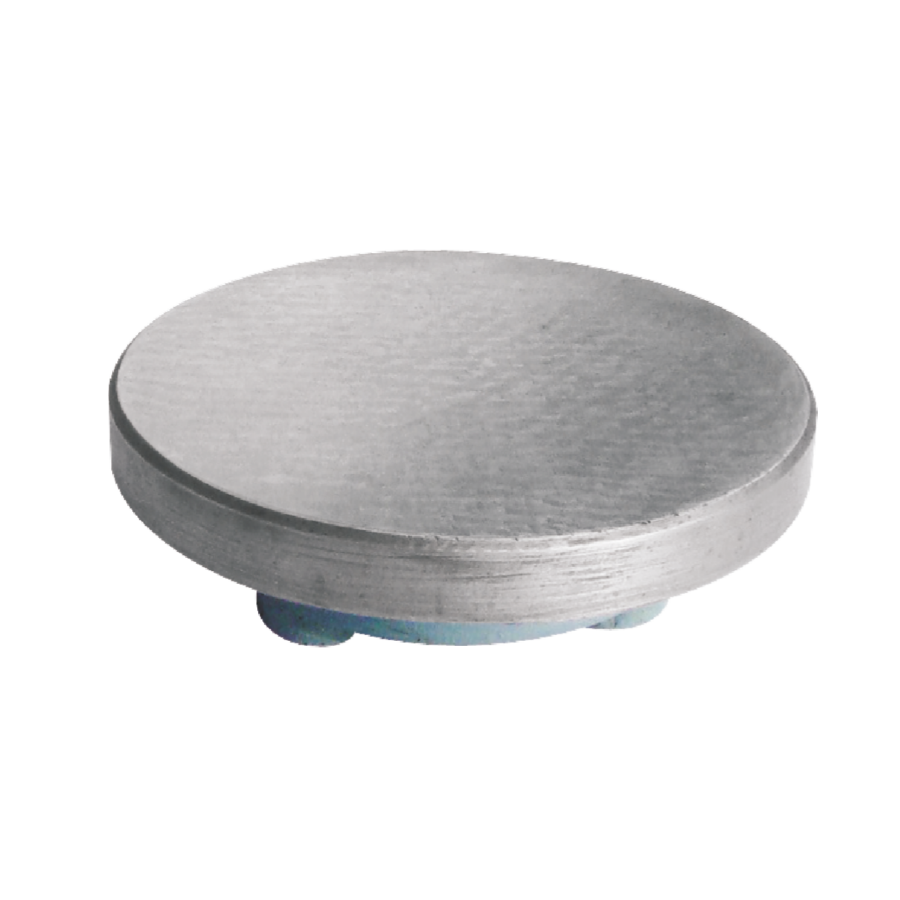

| Round Surface Plate | 112101 | 2 | 50 | 1.1/4 | 30 |
| Round Surface Plate | 112106 | 3 | 75 | 1.1/4 | 30 |
| Round Surface Plate | 112111 | 4 | 100 | 1.9/16 | 40 |
| Round Surface Plate | 112116 | 5 | 125 | 1.9/16 | 40 |
| Round Surface Plate | 112121 | 6 | 150 | 1.9/16 | 40 |
| Round Surface Plate | 112126 | 8 | 200 | 2 | 50 |
| Round Surface Plate | 112131 | 10 | 250 | 2 | 50 |
| Round Surface Plate | 112136 | 12 | 300 | 2 | 50 |
