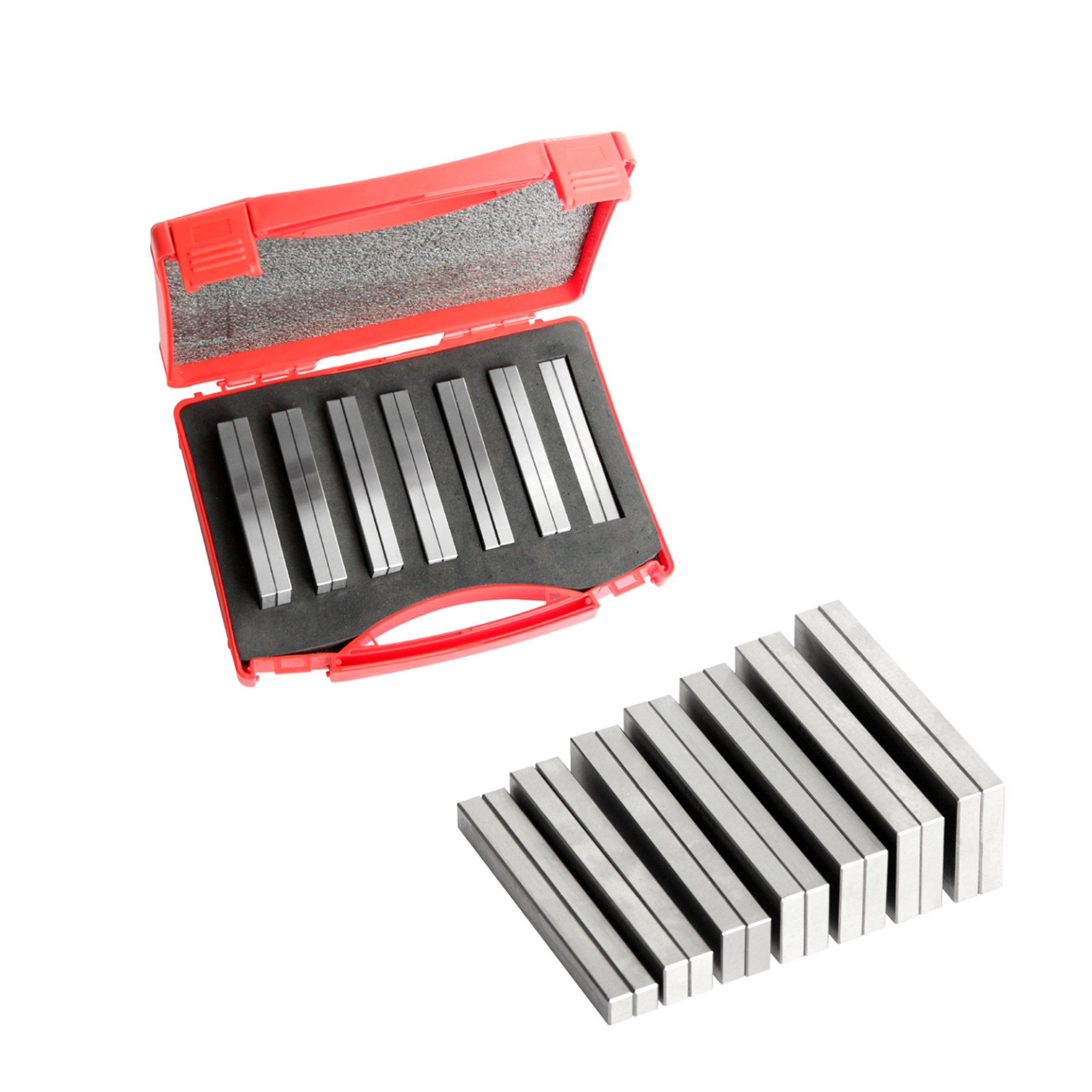

Enquire NowMade of high grade alloy steel, hardened to 58- 62 HRC and ground on all four sides in matched pairs. They are indispensable for setup on drill presses, shapers, grinding and milling machines as well as used for inspection and layout work. Available in two lengths of 3.3/4”/ 95mm and 6”/ 150mm in sets of 7 pairs packed in a fitted beautiful wooden carry case. The 6”/ 150mm is available in a set of 14 pairs also. Total parallelism over the 6"/150mm length is .0001" (0.002mm).
| Ordering No. | Thickness mm | Width mm | Length mm | Net Weight Kgs. |
|---|---|---|---|---|
| 111695 | 8 | 10 | 100 | 1.50 |
| 8 | 15 | 100 | ||
| 8 | 20 | 100 | ||
| 8 | 25 | 100 | ||
| 8 | 30 | 100 | ||
| 8 | 35 | 100 | ||
| 8 | 40 | 100 | ||
| 111660 | 3 | 10 | 95 | 1.50 |
| 3 | 12 | 95 | ||
| 4 | 14 | 95 | ||
| 6 | 18 | 95 | ||
| 6 | 24 | 95 | ||
| 8 | 30 | 95 | ||
| 8 | 38 | 95 | ||
| 111670 | 3 | 10 | 95 | 2.50 |
| 3 | 10 | 150 | ||
| 4 | 14 | 150 | ||
| 6 | 18 | 150 | ||
| 6 | 24 | 150 | ||
| 8 | 30 | 150 | ||
| 8 | 38 | 150 | ||
| 111680 | 3 | 10 | 95 | 5.00 |
| 8.5 | 10 | 150 | ||
| 8.5 | 16 | 150 | ||
| 8.5 | 20 | 150 | ||
| 8.5 | 24 | 150 | ||
| 8.5 | 30 | 150 | ||
| 8.5 | 32 | 150 | ||
| 8.5 | 36 | 150 | ||
| 8.5 | 40 | 150 | ||
| 8.5 | 44 | 150 | ||
| 111690 | 10 | 14 | 150 | 9.75 |
| 10 | 16 | 150 | ||
| 10 | 18 | 150 | ||
| 10 | 20 | 150 | ||
| 10 | 22 | 150 | ||
| 10 | 24 | 150 | ||
| 10 | 26 | 150 | ||
| 10 | 28 | 150 | ||
| 10 | 30 | 150 | ||
| 10 | 32 | 150 | ||
| 10 | 35 | 150 | ||
| 10 | 40 | 150 | ||
| 10 | 45 | 150 | ||
| 10 | 50 | 150 |
