STANDARD POINT LIVE CENTER

Add to Enquiry Bag

Enquire Now

Features

  • This center has been made of hardened steel and is precision ground for accuracy. High quality bearings assure smooth movement at high speed. Concentricity of + /- 0.020mm

Need Expert Advice
-Call us-

+ 91 11 43118888

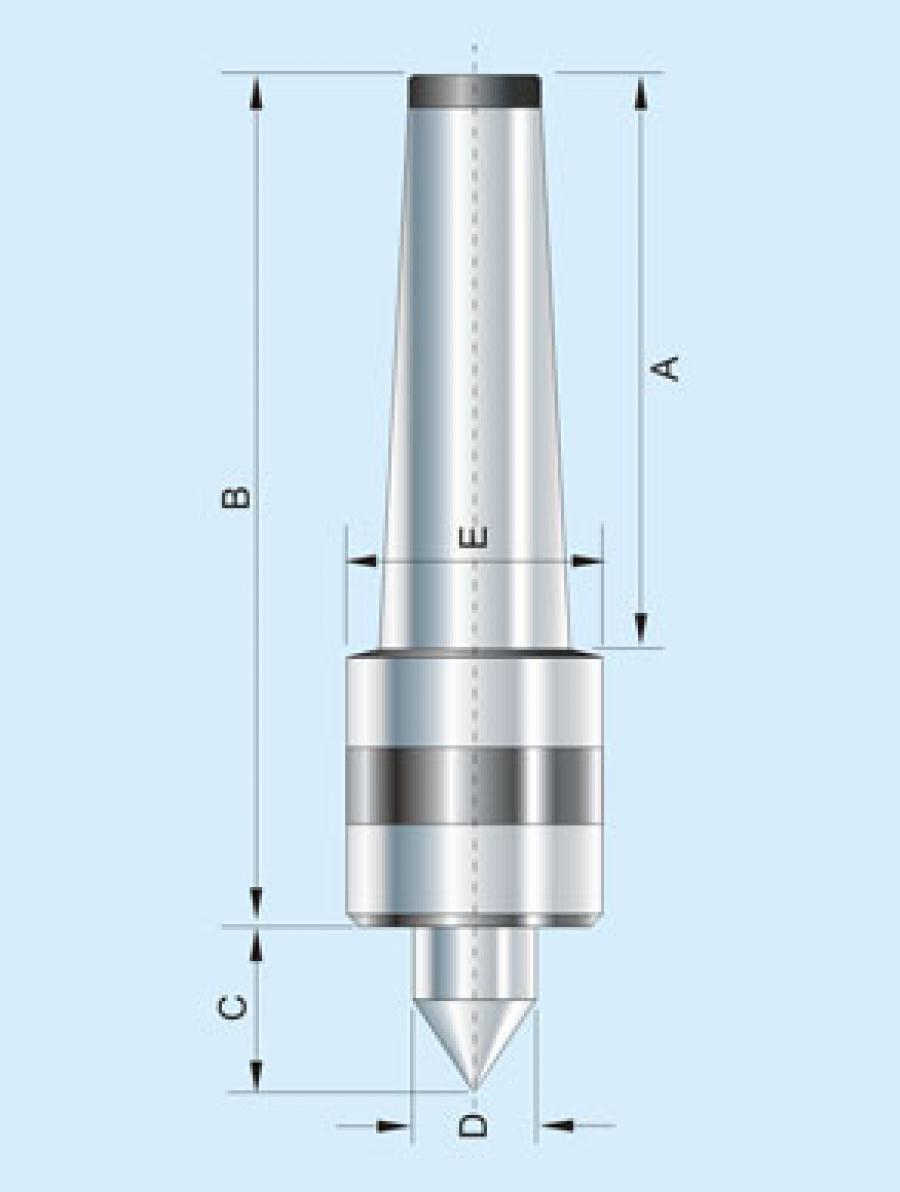

Technical Data

Ordering No.
Carbide Point		 Morse Taper A
mm		 B
mm		 C
mm		 DØ
mm		 EØ
mm		 Max RPM Wt. Kg.
201500 MT1 58 96 27 18 40 1500 0.400
201505 MT2 69 109 27 18 40 1500 0.500
201510 MT3 86 146 34 24 60 1500 1.300
201515 MT4 109 179 37 28 64 1200 2.100
201520 MT5 136 212 48 36 75 1000 4
201525 MT6 195 295 70 52 96 800 10
