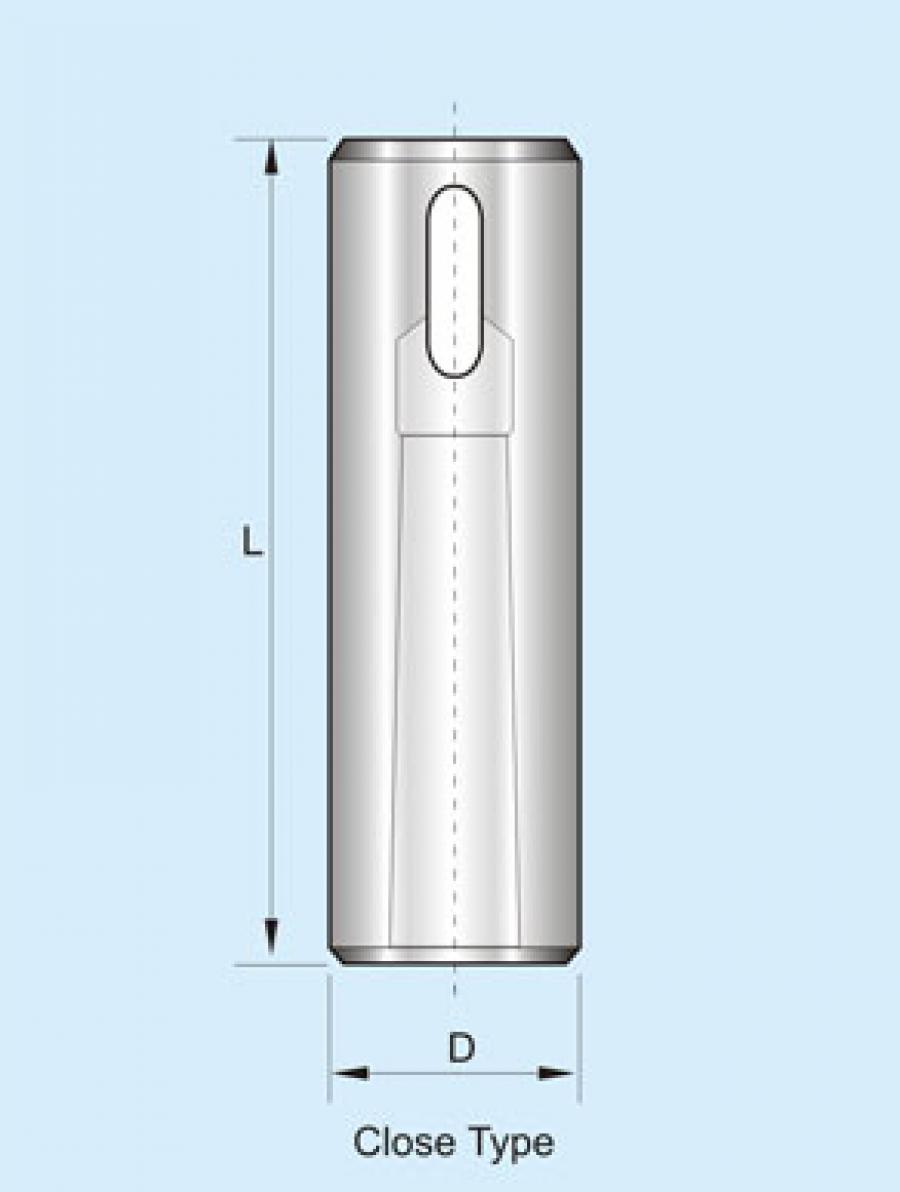

Useful for holding Morse taper shank tools in straight turrets. Manufactured from case hardened steel, precision ground externally and internally.

Ordering No.	Ordering No.	Morse Taper	DØ Shank Dia Inch	DØ Shank Dia mm	L Overall length Inch	L Overall length mm
Inch	mm
200240	220241	1	1	25	3-33/64	88
200242	220243	1	1-1/4	32	3-33/64	88
200244	220245	1	1-1/2	38	3-33/64	88
200246	220247	2	1	25	4	100
200248	220249	2	1-1/4	32	4	100
200250	220251	2	1-1/2	38	4	100
200252	220253	2	1-3/4	44	4	100
200254	220255	2	2	50	4	100
200256	220257	3	1-1/4	32	4-3/4	120
200258	220259	3	1-1/2	38	4-3/4	120
200260	220261	3	1-3/4	44	4-3/4	120
200262	220263	3	2	50	4-3/4	120
200264	220265	4	1-1/2	38	6	150
200266	220267	4	1-3/4	44	6	150
