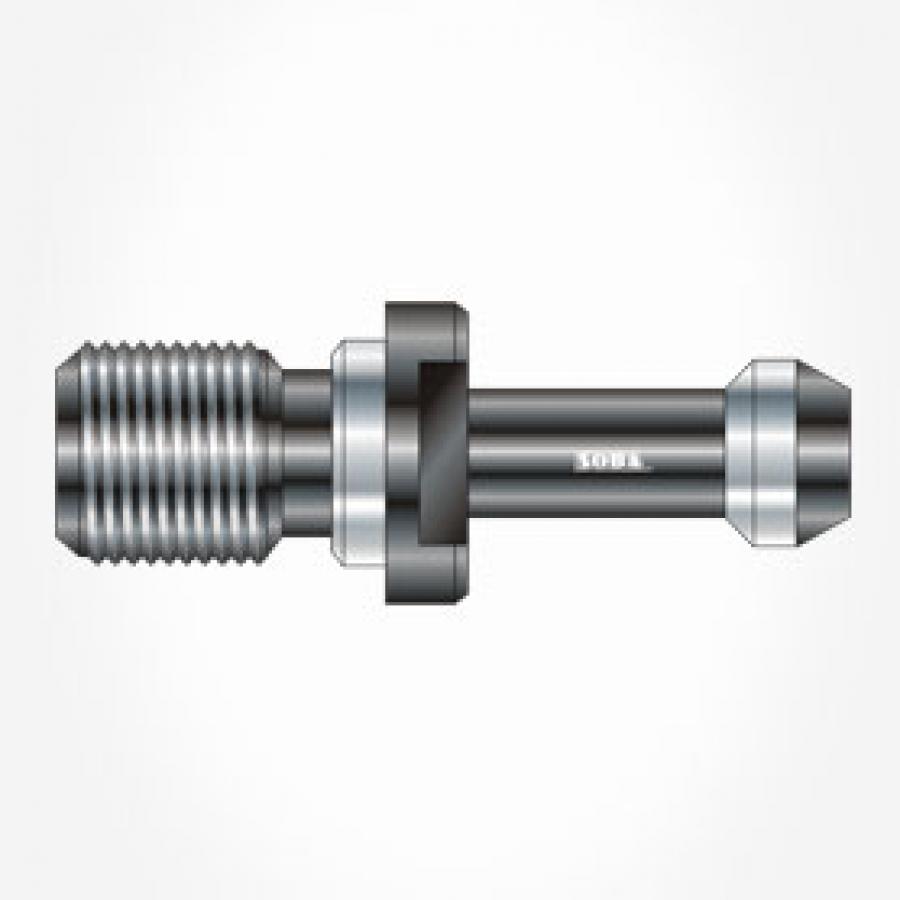

| Ordering No. | SUITABLE FOR TOOL SHANK DIN 69872 |
D | D1 | D2 | D3 | L | L1 | L2 | L3 | L4 | G | 0° | ØA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 286205 | B 40 | 19 | 23 | 17 | 14 | 54 | 26 | 4 | 20 | 7 | M 16 | 75 | - |
| 286210 | B 45 | 23 | 30 | 21 | 17 | 65 | 30 | 5 | 23 | 8 | M 20 | 75 | - |
| 286215 | B 50 | 28 | 36 | 25 | 21 | 74 | 34 | 5 | 25 | 10 | M 24 | 75 | - |
| 286220 | A 40 | 19 | 23 | 17 | 14 | 54 | 26 | 4 | 20 | 7 | M 16 | 75 | 7 |
| 286225 | A 45 | 23 | 30 | 21 | 17 | 65 | 30 | 5 | 23 | 8 | M 20 | 75 | 9.5 |
| 286230 | A 50 | 28 | 36 | 25 | 21 | 74 | 34 | 5 | 25 | 10 | M 24 | 75 | 11.5 |
