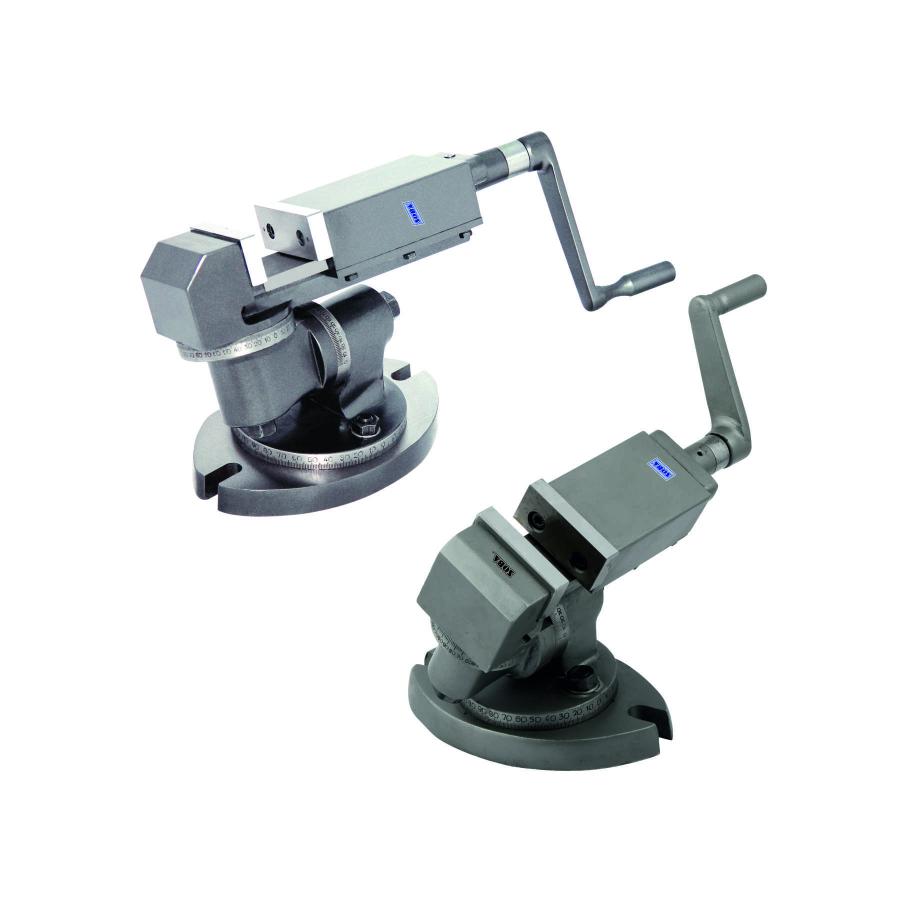

Enquire NowManufactured from close grained high tensile seasoned cast iron. Vises has one fixed horizontal axis which allows the work piece to be rotated at any angle along it. Fully graduated 360° swivel base allows complete rotation along the vertical axis. The third angular slide with moving axis allows for any setting in 3D plane. Jaws are fully hardened and ground with in a parallelism of 0.0012" (30 microns). The hardness of jaws is 55±5 HRC.
| Ordering No. | Length | Width | Height | Jaw Width | Jaw Opening | Jaw Depth | Base Length | Net Weight Kgs. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | ||
| 110060 | 6.3/4 | 170 | 3.3/4 | 95 | 5.1/4 | 130 | 2 | 50 | 2 | 50 | 1 | 25 | 5.3/8 | 135 | 4.000 |
| 110061 | 10 | 255 | 5.5/8 | 145 | 7.3/16 | 185 | 3 | 75 | 3 | 77 | 1.1/4 | 30 | 8 | 200 | 11.500 |
| 110062 | 11.5/8 | 295 | 6.1/2 | 165 | 8.1/16 | 205 | 4 | 100 | 4 | 100 | 1.1/2 | 40 | 8.7/8 | 225 | 19.000 |
