PRECISION TILTING AND SWIVELING MACHINE VISES

Add to Enquiry Bag

Enquire Now

Features

Manufactured from close grained high tensile seasoned cast iron. Tilting adjustments is achieved via angular slide that can be set to any desired angle 45° on either sides. The 360° swivel base allows the vise to be set at any angle along with vertical axis. Jaws are fully hardened and ground with in a parallelism of 0.0012" (30 microns). The hardness of jaws is 55±5 HRC.

Need Expert Advice
-Call us-

+ 91 11 43118888

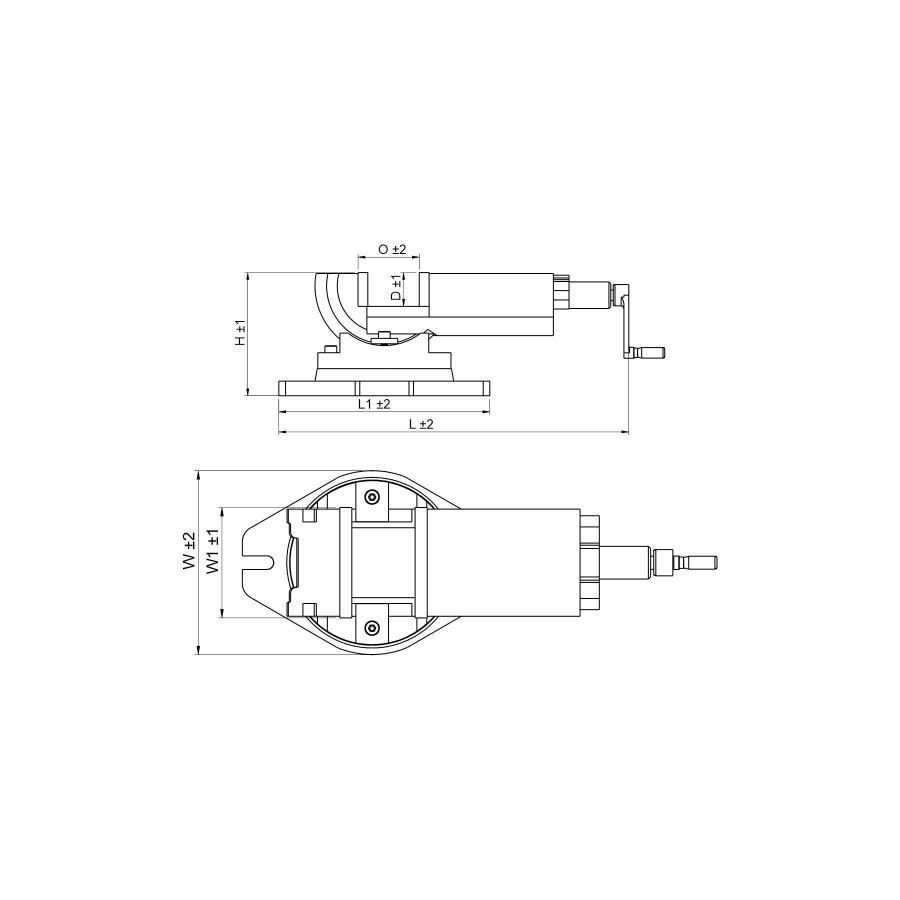

Technical Data

Ordering No. Length Width Height Jaw Width Jaw Opening Jaw Depth Base Length Net Weight
Kgs.
Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
110025 8 205 3.7/8 100 3.1/2 90 2 50 2 50 1 25 5.3/4 145 3.25
110026 11.1/4 285 5.7/16 140 4.3/4 120 3 75 3 75 1.1/4 30 7.5/8 195 9.25
110027 13.3/8 340 6.5/8 170 5.1/2 140 4 100 4 100 1.1/2 40 9.1/4 235 18.00
110028 15.3/8 390 5.7/16 200 6 160 5 125 5 125 2 50 10.1/2 265 32.00
110029 18 456 8.11/16 220 7 180 6 150 6 155 2 50 11.5/8 295 38.00
110030 26.1/2 673 11 280 9.1/2 240 8 200 8 200 2.1/2 65 16.3/8 415 77.00
