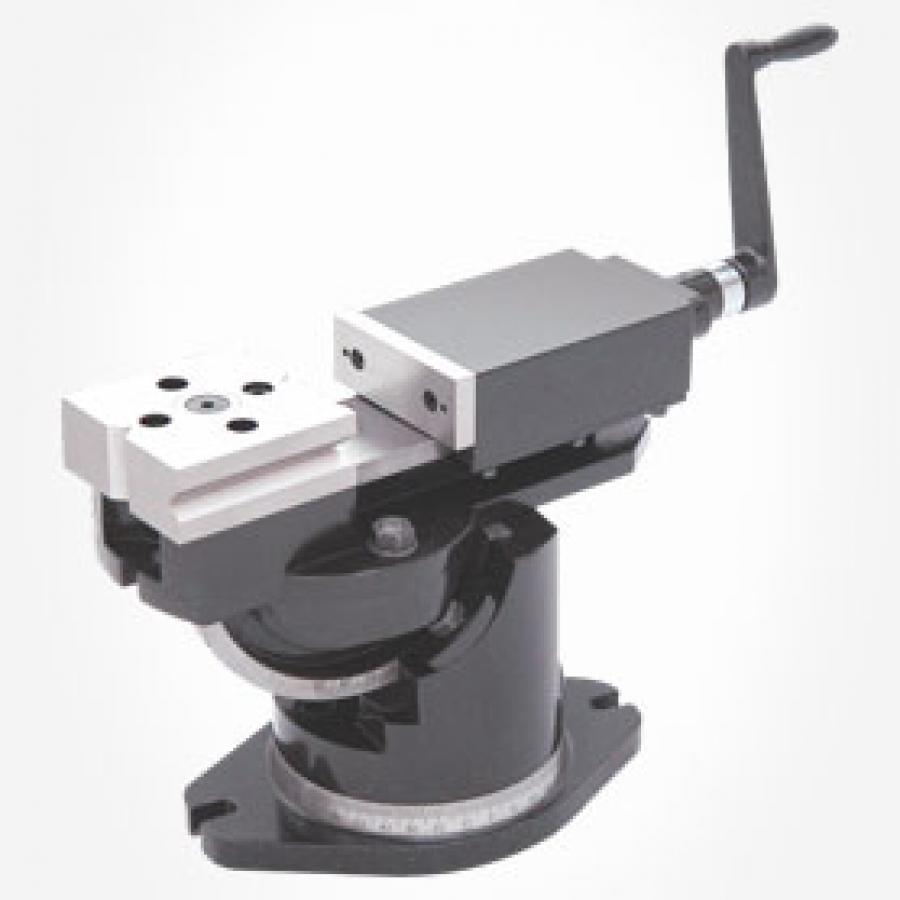

PRECISION ROTARY HEAD TILTING & SWIVELING MACHINE VISE

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTICS
  • Manufactured from heavy duty close grained high tensile seasoned cast iron with precision rotary head 4 way block made of tool steel. Hardened & Ground Block hardness 55±5 HRC.
  • Parallelism <0.015mm. Tilting adjustment is achieved via angular slide that can be set to any desired angle 45° on either side. The 360° swivel base allows the vise to be set at any angle along with vertical axis. Jaw block rotates on the axis. The jaw block can hold the circular job vertical & horizontal. Also holds the flat job on flat surface.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Length Width Height Jaw Width Jaw Opening Jaw Depth Base Length Net Weight
Kgs.
Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
110075 14.1/4 362 6.3/4 172 8 200 4 100 4 100 1.1/2 38 9.1/4 235 28.50
