Enquire NowManufactured from close grained high tensile seasoned cast iron. The 360° swivel base allows the vise to be set at any angle along with vertical axis. Jaws are fully hardened and ground with a parallelism of 0.0012" (30 microns). The hardness of jaws is 55±5 HRC.

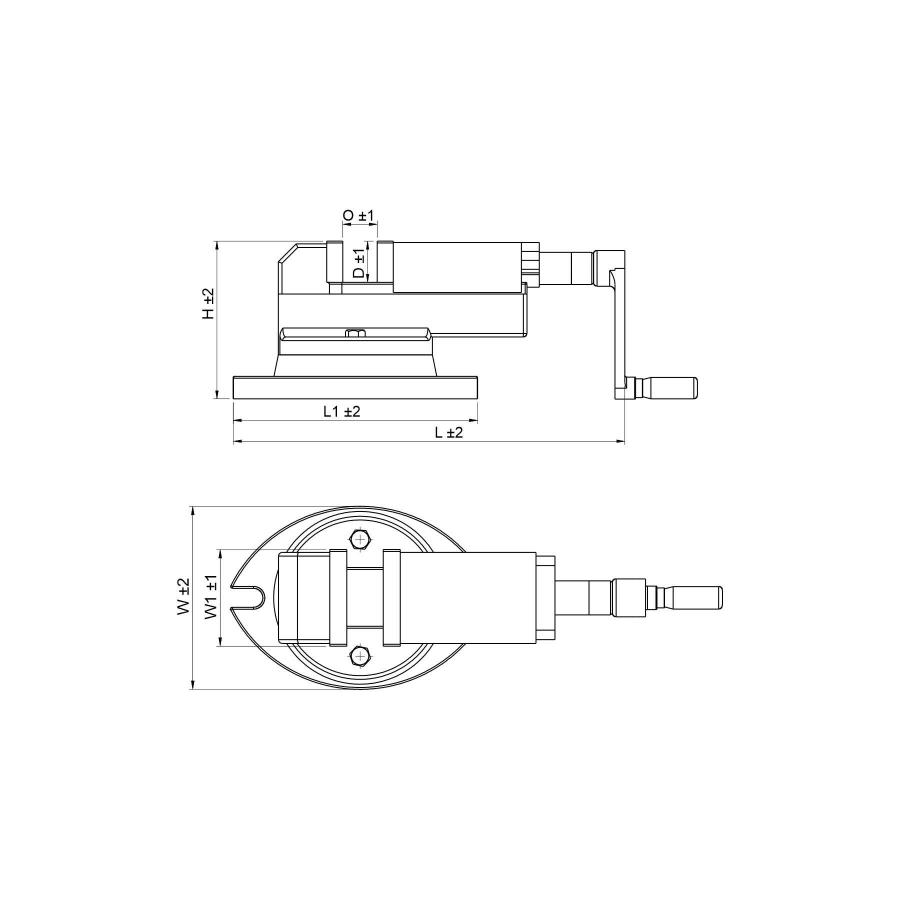

| Ordering No. | Length | Width | Height | Jaw Width | Jaw Opening | Jaw Depth | Base Length | Net Weight Kgs. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | ||
| 110010 | 7.15/16 | 200 | 3.3/4 | 95 | 3.9/16 | 90 | 2 | 50 | 2.1/16 | 50 | 1 | 25 | 5.5/8 | 140 | 3.000 |
| 110011 | 11.5/16 | 285 | 5.3/8 | 135 | 4 | 100 | 3 | 75 | 3.1/8 | 80 | 1.1/4 | 30 | 7.5/8 | 195 | 8.500 |
| 110012 | 13.1/2 | 345 | 6.1/2 | 165 | 4.3/4 | 120 | 4 | 100 | 4 | 100 | 1.1/2 | 40 | 8.7/8 | 225 | 16.000 |
| 110013 | 15.13/16 | 400 | 7.9/16 | 190 | 5.1/4 | 130 | 5 | 125 | 5.1/16 | 130 | 1.15/16 | 50 | 10 | 225 | 22.000 |
| 110014 | 19.3/8 | 490 | 8.3/4 | 220 | 6 | 155 | 6 | 150 | 6.1/16 | 155 | 2.3/16 | 55 | 11.5/8 | 295 | 35.000 |
| 110015 | 25 | 635 | 11 | 280 | 8 | 200 | 8 | 200 | 8 | 200 | 2.3/8 | 60 | 16.3/8 | 415 | 62.000 |
