Enquire NowManufactured from graded cast iron these vises have a precision ground base. Vises are equipped with a convenient unigrip mechanism. Longitudinal and Transversal prisms in the fixed jaw allow for firm gripping of round jobs of different sizes both horizontally and vertically.

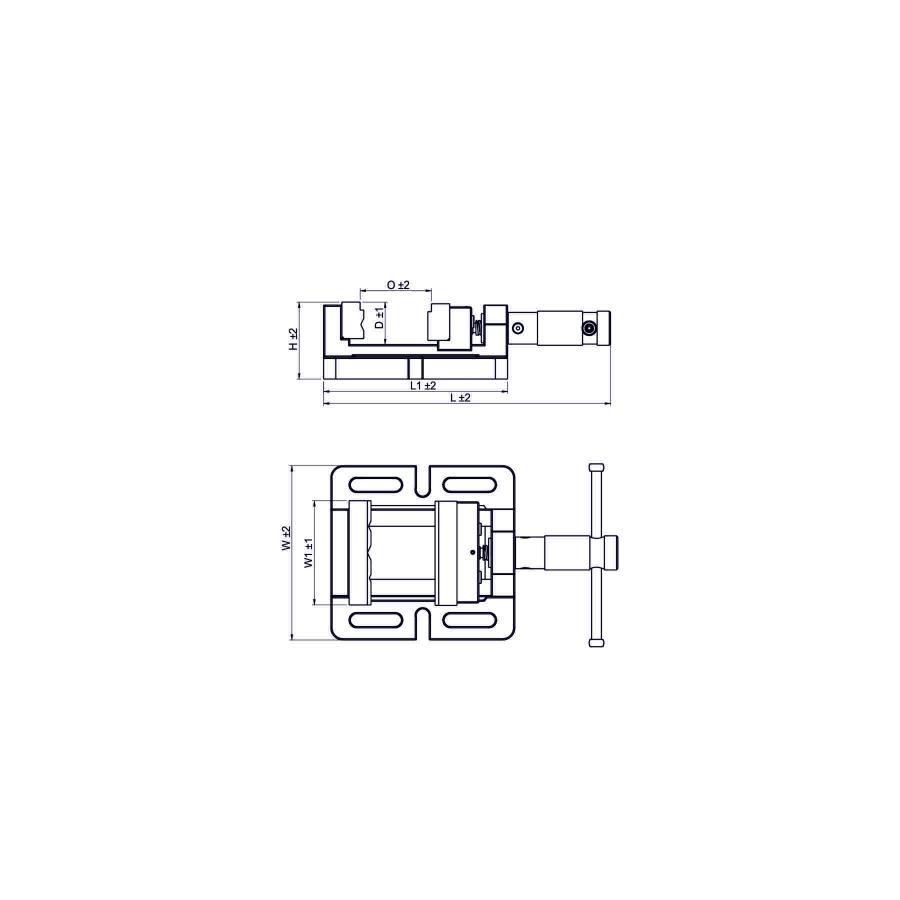

| Ordering No. | Length | Width | Height | Jaw Width | Jaw Opening | Jaw Depth | Base Length | Net Weight Kgs. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | ||
| 110160 | 9.3/8 | 238 | 5.5/8 | 143 | 2.1/2 | 63 | 3.1/4 | 83 | 2.1/2 | 63 | 1.1/4 | 33 | 6 | 155 | 3.50 |
| 110161 | 11 | 280 | 6 | 152 | 2.1/2 | 63 | 4 | 100 | 3.3/4 | 95 | 1.3/8 | 35 | 6.7/8 | 175 | 4.00 |
| 110162 | 13.1/4 | 336 | 7 | 178 | 2.1/2 | 63 | 4.3/4 | 120 | 4 | 100 | 1.1/2 | 38 | 8.5/8 | 220 | 6.00 |
| 110163 | 15.3/4 | 374 | 8 | 203 | 3 | 76 | 6 | 150 | 5.1/2 | 140 | 1.1/2 | 39 | 9.7/8 | 250 | 9.50 |
