SOBA

Add to Enquiry Bag

Enquire Now

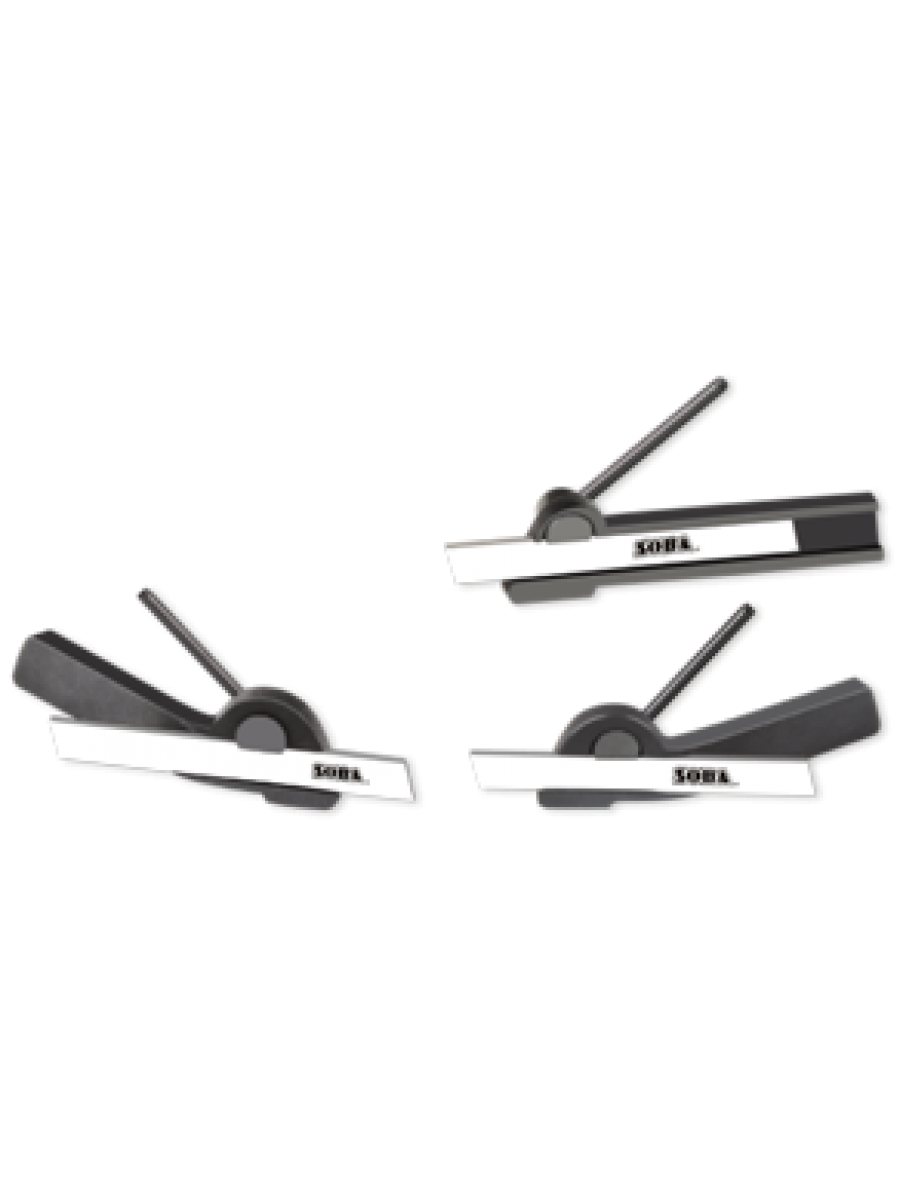

Body is manufactured of drop forged steel, case hardened Top and bottom machined true with sides.
Positive locking device ensures rapid and powerful clamping of the blade.
Lock enables the blade to be changed, sharpened or moved without disturbing the tool holder.
Blades are manufactured of super cobalt high speed steel, hardened and ground all over to ensure maximum cutting efficiency.
Tools are supplied complete with wrench.

Straight Ordering No.	Right Hand Ordering No.	Left Hand Ordering No.	Holder Size		Blade Size
			Inch	mm	Inch	mm
392700	292705	392710	5/16 x 9/16 x 3.11/16	8 x 14 x 94	1/16 x 5/16	1.58 x 8
392720	392725	392730	5/16 x 3/4 x 4.1/2	8 x 19 x 114	3/32 x 1/2	2.4 x 12.7
392740	392745	392750	3/8 x 7/8 x 5	9.5 x 22 x 125	3/32 x 5/8	2.4 x 16
392760	392765	392770	1/2 x 1.1/8 x 6	12.7 x 28 x 150	1/8 x 3/4	3 x 19
392780	392785	392790	5/8 x 1.3/8 x 7	16 x 35 x 175	1/8 x 7/8	3 x 22
392800	392805	392810	3/4 x 1.5/8 x 8	19 x 41 x 200	3/16 x 1	5 x 25
392820	392825	392830	7/8 x 1.3/4 x 9	22 x 45 x 225	3/16 x 1.1/8	5 x 28
