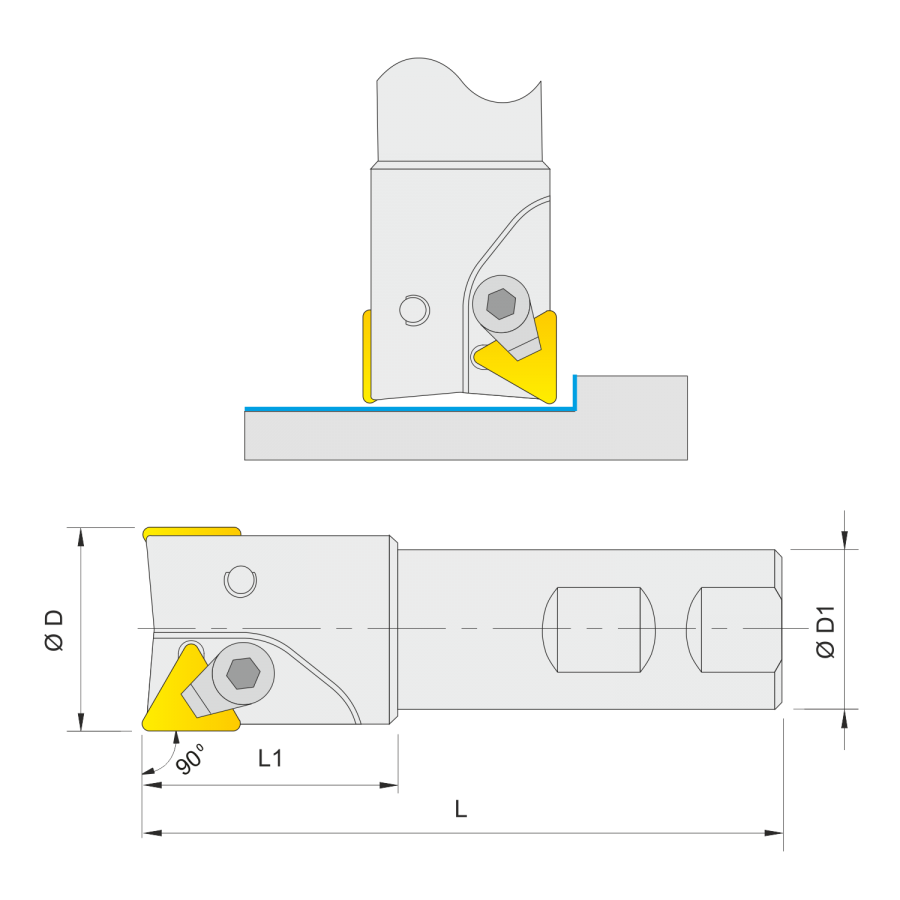

| ISO Designation | Dimmension (mm) | Spare Type | Insert | Ordering No. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0D | 0D1 | L1 | L | Z | ||||||
| BATP 1212 11 | 12 | 12 | 30 | 80 | 01 | K161 | TPAN 1103-- | 760512 | ||
| BATP 1412 11 | 14 | 12 | 30 | 80 | 01 | K161 | TPAN 1103-- | 760514 | ||
| BATP 1616 11 | 16 | 16 | 32 | 90 | 01 | K161 | TPAN 1103-- | 760516 | ||
| BATP 2020 11 | 20 | 20 | 36 | 100 | 02 | K161 | TPAN 1103-- | 760520 | ||
| BATP 2520 11 | 25 | 20 | 36 | 100 | 02 | K161 | TPAN 1103-- | 760525 | ||
| BATP 3220 11 | 32 | 20 | 40 | 110 | 02 | K161 | TPAN 1103-- | 760532 | ||
| BATP 1616 16 | 16 | 16 | 32 | 100 | 01 | K164 | TPAN 1603-- | 760616 | ||
| BATP 2020 16 | 20 | 20 | 32 | 100 | 01 | K164 | TPAN 1603-- | 760620 | ||
| BATP 2520 16 | 25 | 20 | 36 | 100 | 02 | K164 | TPAN 1603-- | 760625 | ||
| BATP 3220 16 | 32 | 20 | 36 | 110 | 02 | K164 | TPAN 1603-- | 760632 | ||
| BATP 4020 16 | 40 | 20 | 40 | 110 | 03 | K164 | TPAN 1603-- | 760640 | ||
| BATP 5020 16 | 50 | 20 | 40 | 110 | 03 | K164 | TPAN 1603-- | 760650 | ||
