MICRO BORING HEADS 171160

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTIC
  • This boring head has an excellent wide base design and high quality ensuring long life and rigidity even when it is used in an offset position. The screw is hardened and ground which gurantees long life and trouble free use. An ideal product for mill or jig bore operations. Inter changeable shanks of the heads make it adaptable for use on different machines.

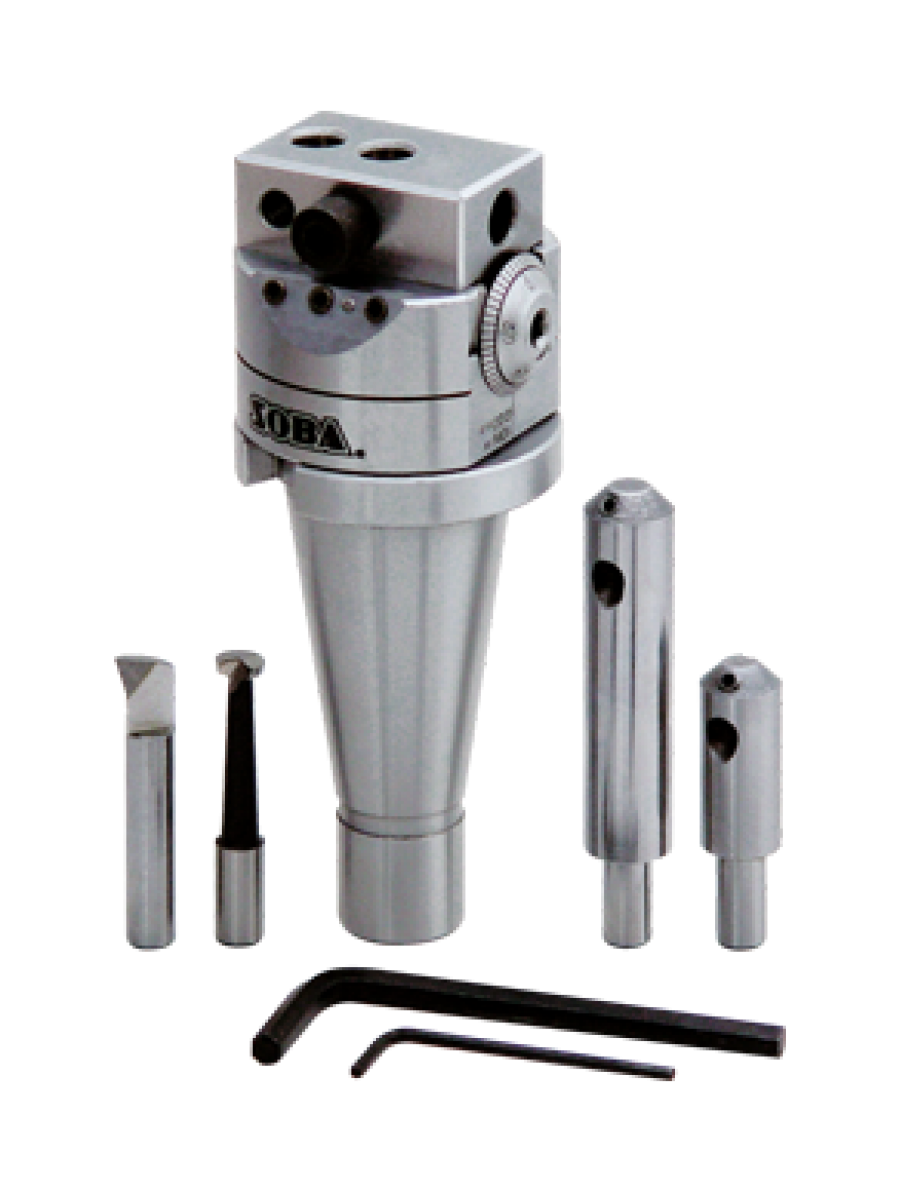

  • The Complete Set Consists of the following
  • Boring head 62mm
  • ISO40 Shank
  • 10mm HSS Boring Tool
  • 10mm Carbide Brazed Boring Tool
  • Fly Cutter 41mm overall length
  • 45° Hole to Hold 6mm HSS Round Tool Bit
  • Fly Cutter 75mm overall length
  • 45° Hole to Hold 6mm HSS Round Tool Bit
  • 2 pc Hex Keys

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering
No.
Boring
Head Dia.
Overall
Length
Boring
Bar Hole Ø
Centre
Distance
Between Hole
Cross Hole
Size Ø
Slide Radial
Travel
Minimum
Bore
Maximum
Bore
Mounting
Thread
Net.Weight
Kg.
mm mm mm mm mm mm mm mm mm
171160 62 52 10 24 10 22 10 85 16x1.5 2.600
