Individual Tool Holders

Add to Enquiry Bag

Enquire Now

Features

  • This quick change tool post has a very rigid design and all components are hardened and ground to give you high repeatability and very good accuracies to .005mm. Saving of set up time as different tool holders can be used and change over time can be reduced by using preset holders. A useful set for most lathes.

Need Expert Advice
-Call us-

+ 91 11 43118888

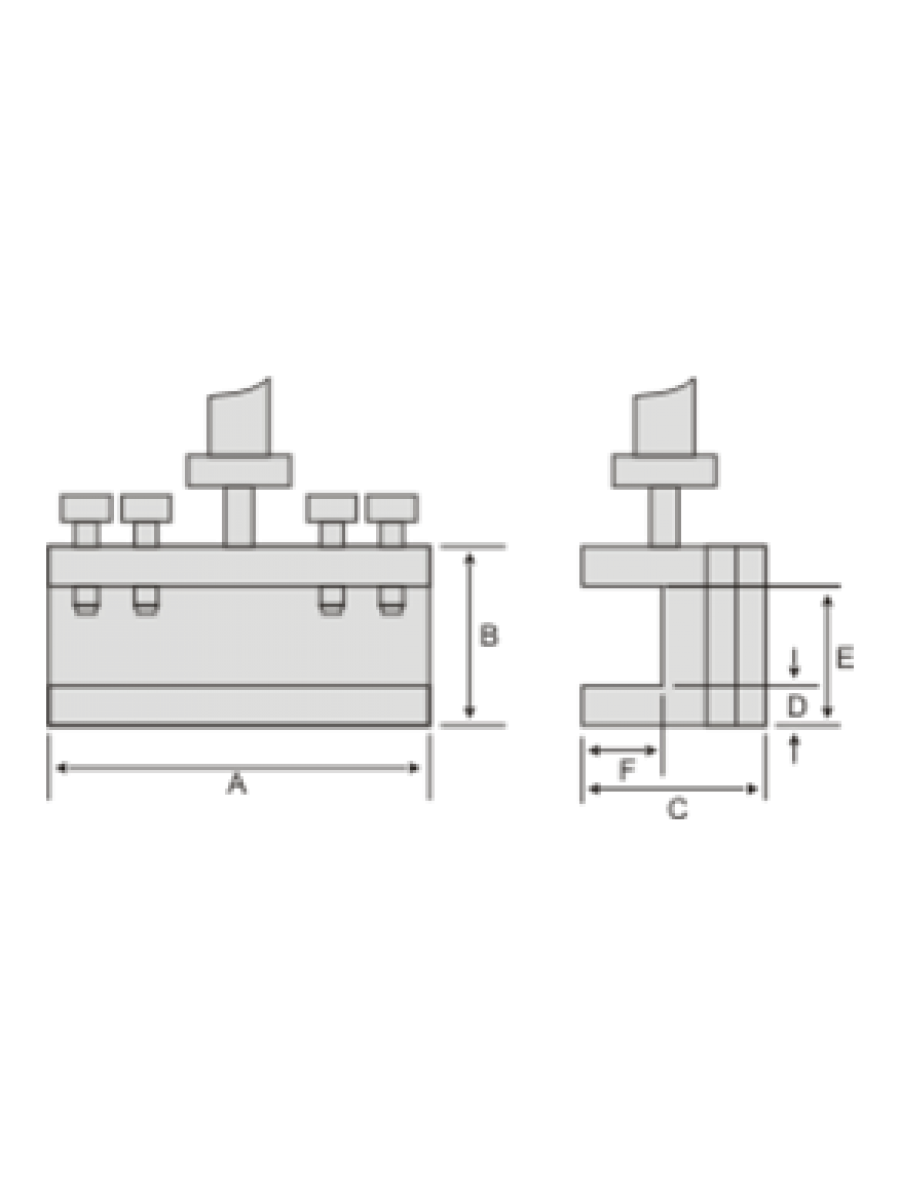

Technical Data

Ordering No. A B C D E F
mm mm mm mm mm mm
390204 58 27.5 28 6 13.5 10
390234 73 35 32 8 17 14
390264 98.5 50 39.5 13 22 19
