HORIZONTAL / VERTICAL ROTARY TABLES

Add to Enquiry Bag

Enquire Now

Features

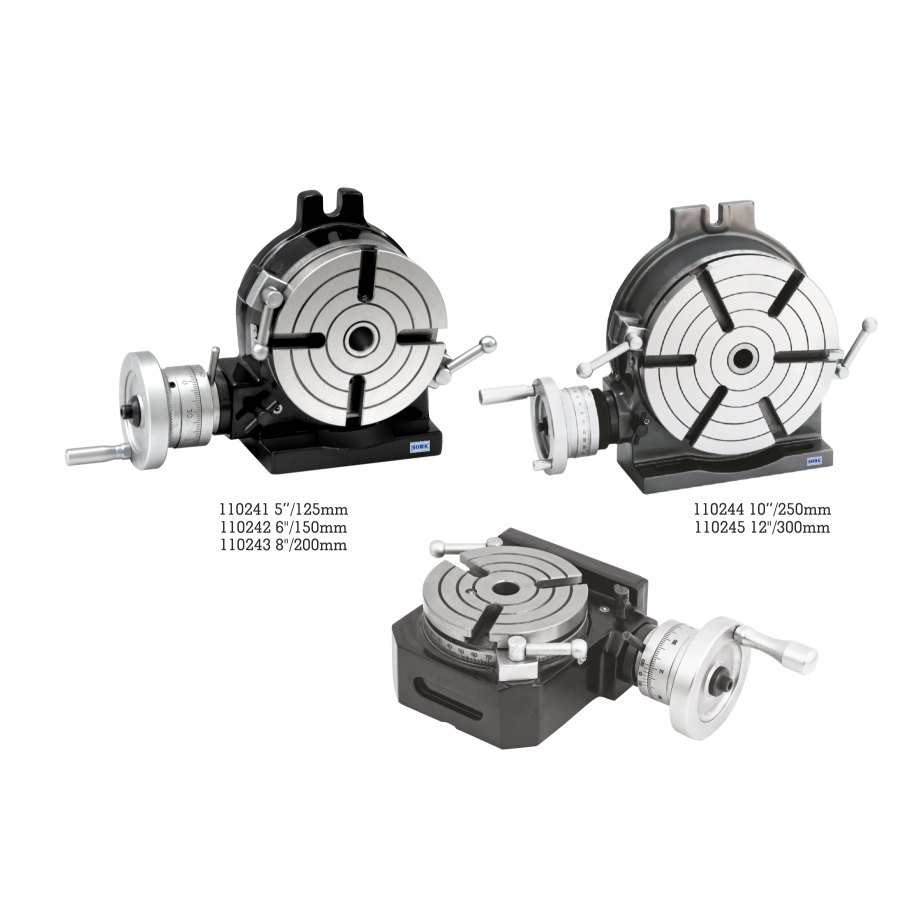

Manufactured from graded cast iron and precision ground. Worm is hardened and ground. The worktable is graduated to a full 360°. For tables having a ratio of 90:1 one turn of the handle moves the table 4°. The micro collar is graduated in steps of 1 min. Vernier scale makes setting down to 10 seconds possible. We also offer indexing sets and tail stocks. 111320 Tilting table is suitable for 4"/100mm rotary table No. 110240.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Table Dia. Height Width of
T. Slot
Center
Sleeve
Dividing Tail Stock
Order Nr.
Gear Ratio Net Weight
Kgs.
T Slot
  Inch mm Inch mm     Order Nr.
110239 4.5/16 110 2.7/8 72 M6 MT2 110260 111301 90:1 8.50 3
110241 5 125 2.7/8 72 M6 MT-2 110266 111301 90:1 8.20 4
110242 6 150 3 77 M8 MT-2 110260 111301 90:1 11.50 4
110243 8 200 4 103 M12 MT-3 110265 110247 90:1 26.00 4
110244 10 250 4.3/8 110 M12 MT-3 110265 110247 90:1 37.00 6
110245 12 300 5 125 M12 MT-4 110270 110248 90:1 65.00 6
