HIGH PRECISION LIVE CENTERS FOR CNC LATHES LOW BODY

Add to Enquiry Bag

Enquire Now

Features

  • LOW BODY
  • Precision Live centers having small bodies useful on all CNC lathes, has a point angle of 60 degrees. Fitted with multiple roller bearings and thrust bearing at the end of the points in the shank. Available in two types with carbide points or tool steel points. Bearings are protected by a combination of steel shield and neoprene seal for longer life.

Need Expert Advice
-Call us-

+ 91 11 43118888

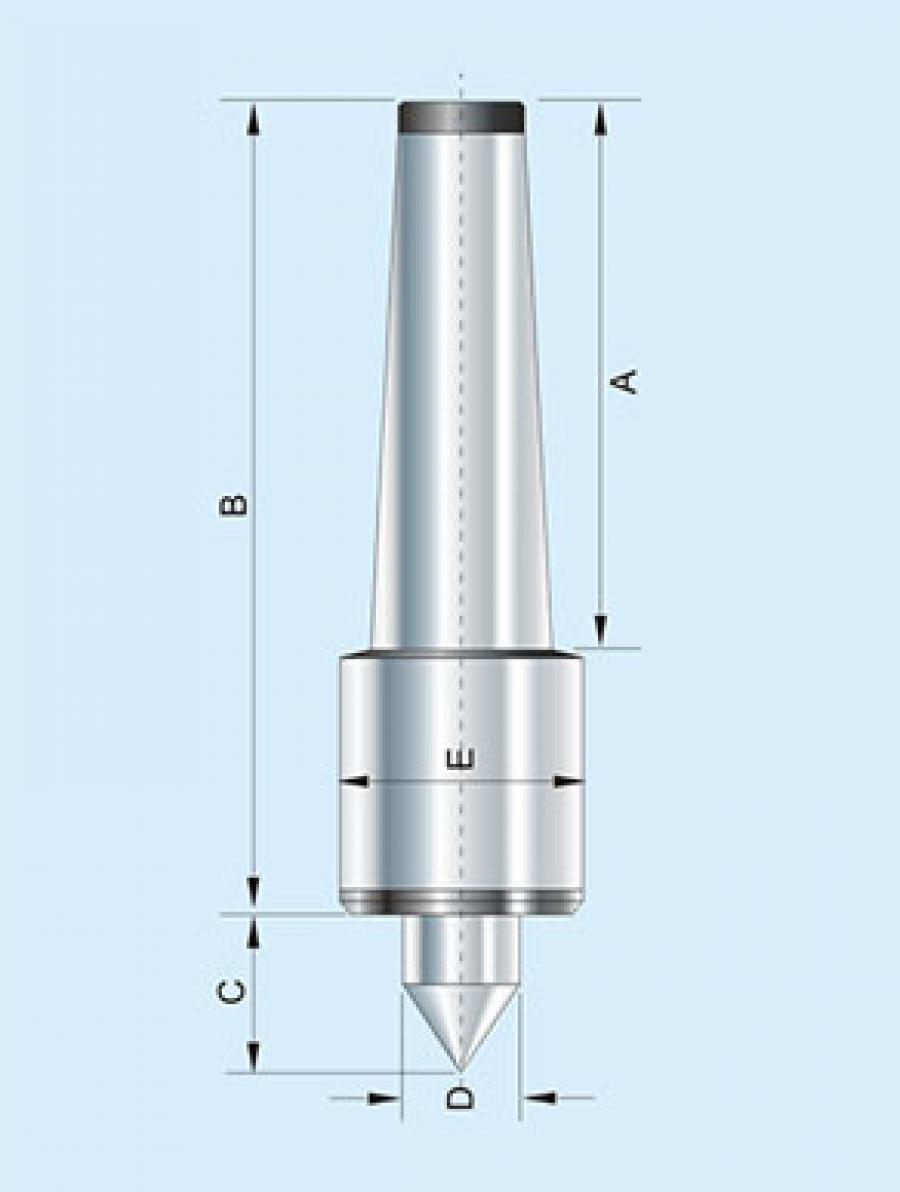

Technical Data

Ordering No.
Carbide Point
Ordering No.
Tool Steel Point
Taper A
mm
B
mm
C
mm

mm
E
mmØ
Max RPM Work Pc
Weight
T.I.R. Wt. Kg.
201591 201592 MT2 69 113 18 15 32 4000 200 0.005 0.32
201593 201594 MT3 86 113 18 15 34 4000 400 0.005 0.46
201595 201596 MT4 109 160 25 20 42 4000 800 0.005 1.0
201597 201598 MT5 136 206 34 30 58 3000 1600 0.01 2.6
