HALF DEAD CENTERS

Add to Enquiry Bag

Enquire Now

Features

  • Manufactured from high carbon steel fully hardened and precision ground to DIN standards of 806 having a T.I.R. of + / - 2.5 microns. Available in two types full and half dead centers, with carbide tips and HSS tips . The carbide/ HSS tips are brazed into the socket with a close tolerance for maximum strength

Need Expert Advice
-Call us-

+ 91 11 43118888

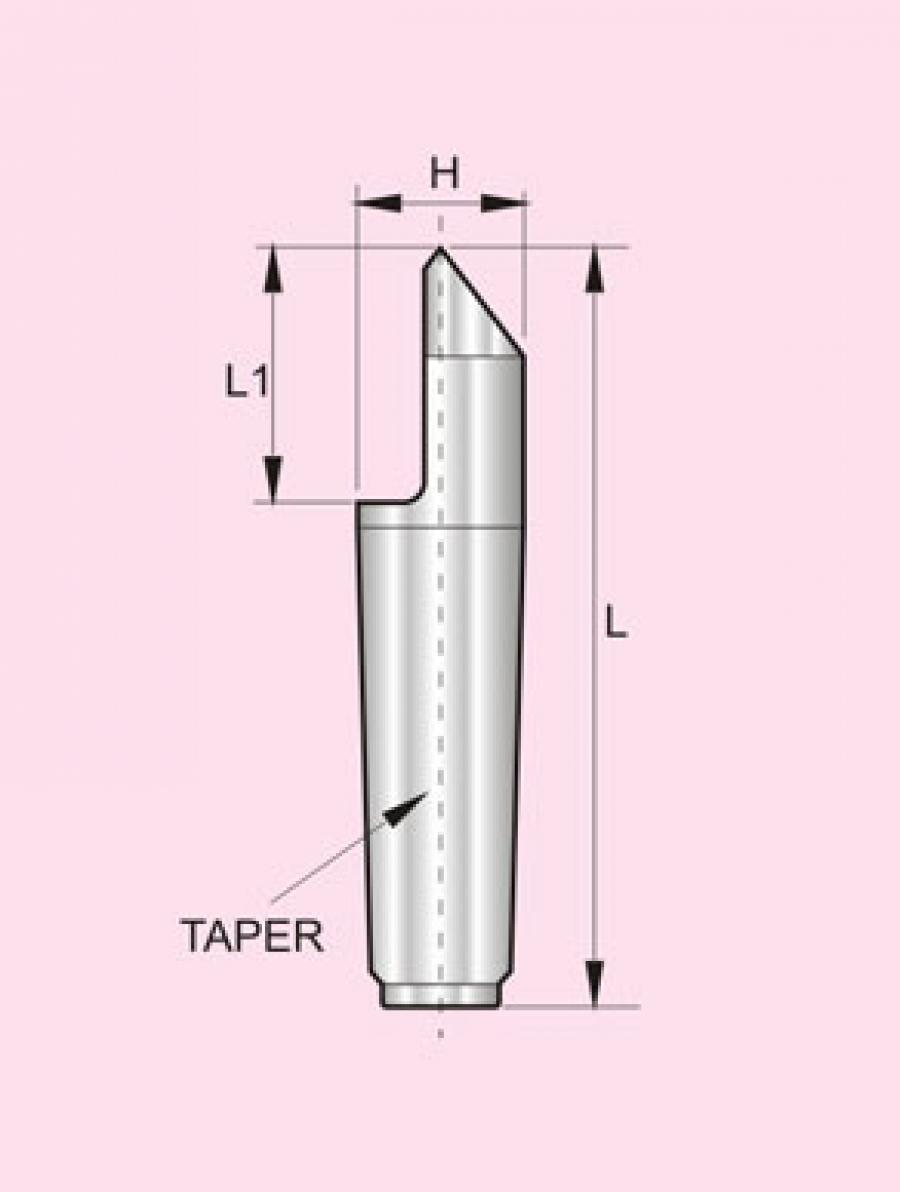

Technical Data

Carbide Tipped Ordering No. Carbon steel Ordering No. Morse Taper L H L1
      Inch mm Inch mm Inch mm
201400 201450 MT1 3-3/16 80 1/2 12.2 7/8 22
201405 201455 MT2 4 100 23/32 18.00 1-13/16 30
201410 201460 MT3 5 125 31/32 24.1 1-17/32 38
201415 201465 MT4 6-3/8 160 1-1/4 36.6 2 50
201420 201470 MT5 8 200 1-25/32 44.7 2-17/32 63
