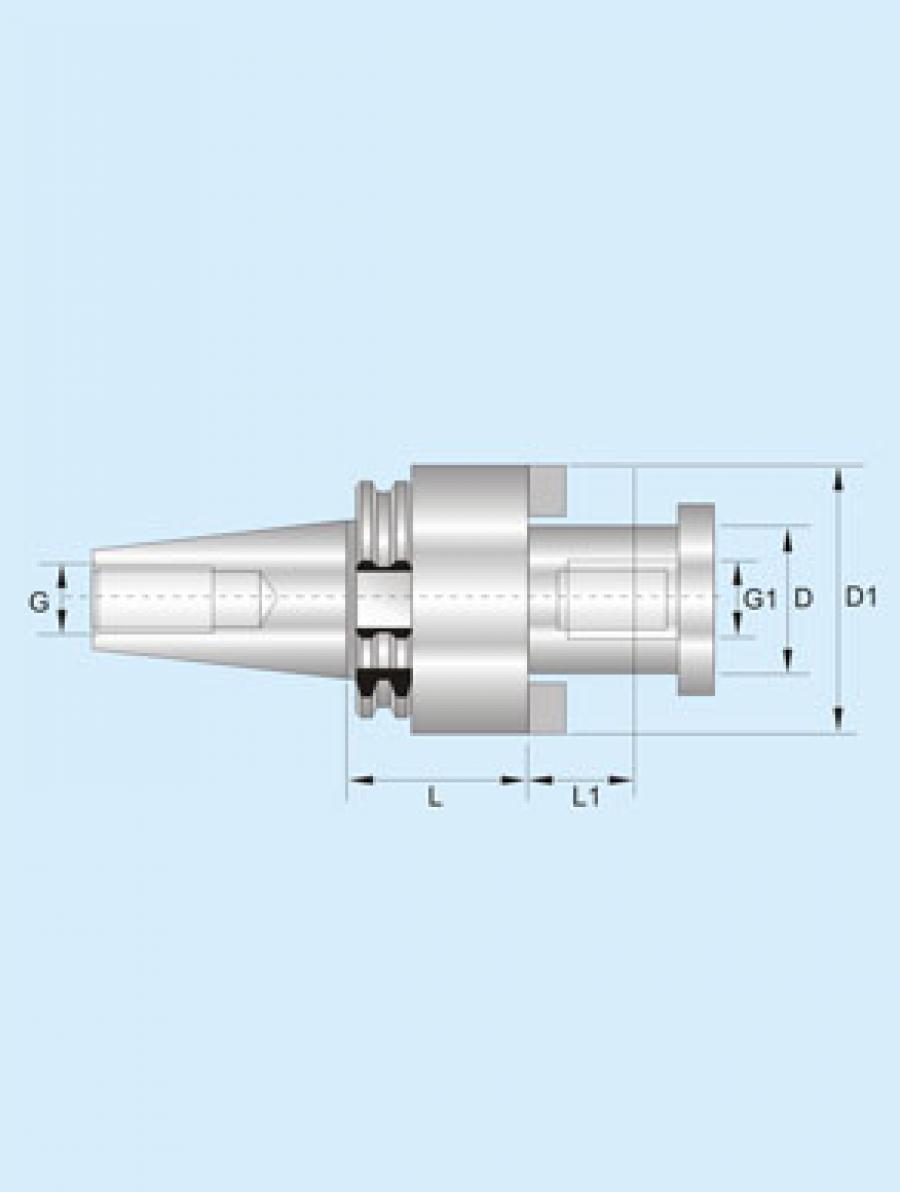

Ordering No. | TYPE | D | D1 | L | L1 | G | G1 |
---|---|---|---|---|---|---|---|
281305 | SK 30 / FMB 16 x 045 | 16 | 40 | 45 | 17 | M 12 | M 8 |
281310 | SK 30 / FMB 22 x 047 | 22 | 45 | 47 | 19 | M 12 | M 10 |
281315 | SK 30 / FMB 27 x 050 | 27 | 63 | 50 | 21 | M 12 | M 12 |
281320 | SK 40 / FMB 22 x 055 | 22 | 45 | 55 | 19 | M 16 | M 10 |
281325 | SK 40 / FMB 27 x 060 | 27 | 63 | 60 | 21 | M 16 | M 12 |
281330 | SK 40 / FMB 27 x 090 | 27 | 63 | 90 | 21 | M 16 | M 12 |
281335 | SK 40 / FMB 32 x 060 | 32 | 78 | 60 | 24 | M 16 | M 16 |
281340 | SK 40 / FMB 32 x 090 | 32 | 78 | 90 | 24 | M 16 | M 16 |
281345 | SK 40 / FMB 40 x 060 | 40 | 90 | 60 | 27 | M 16 | M 20 |
281350 | SK 40 / FMB 40 x 075 | 40 | 90 | 75 | 27 | M 16 | M 20 |
281355 | SK 50 / FMB 27 x 045 | 27 | 63 | 45 | 21 | M 24 | M 12 |
281360 | SK 50 / FMB 27 x 090 | 27 | 63 | 90 | 21 | M 24 | M 12 |
281365 | SK 50 / FMB 27 x 150 | 27 | 63 | 150 | 21 | M 24 | M 12 |
281370 | SK 50 / FMB 32 x 060 | 32 | 78 | 60 | 24 | M 24 | M 16 |
281375 | SK 50 / FMB 32 x 090 | 32 | 78 | 90 | 24 | M 24 | M 16 |
281380 | SK 50 / FMB 40 x 060 | 40 | 90 | 60 | 27 | M 24 | M 20 |
281385 | SK 50 / FMB 40 x 075 | 40 | 90 | 75 | 27 | M 24 | M 20 |
281390 | SK 50 / FMB 40 x 105 | 40 | 90 | 105 | 27 | M 24 | M 20 |
