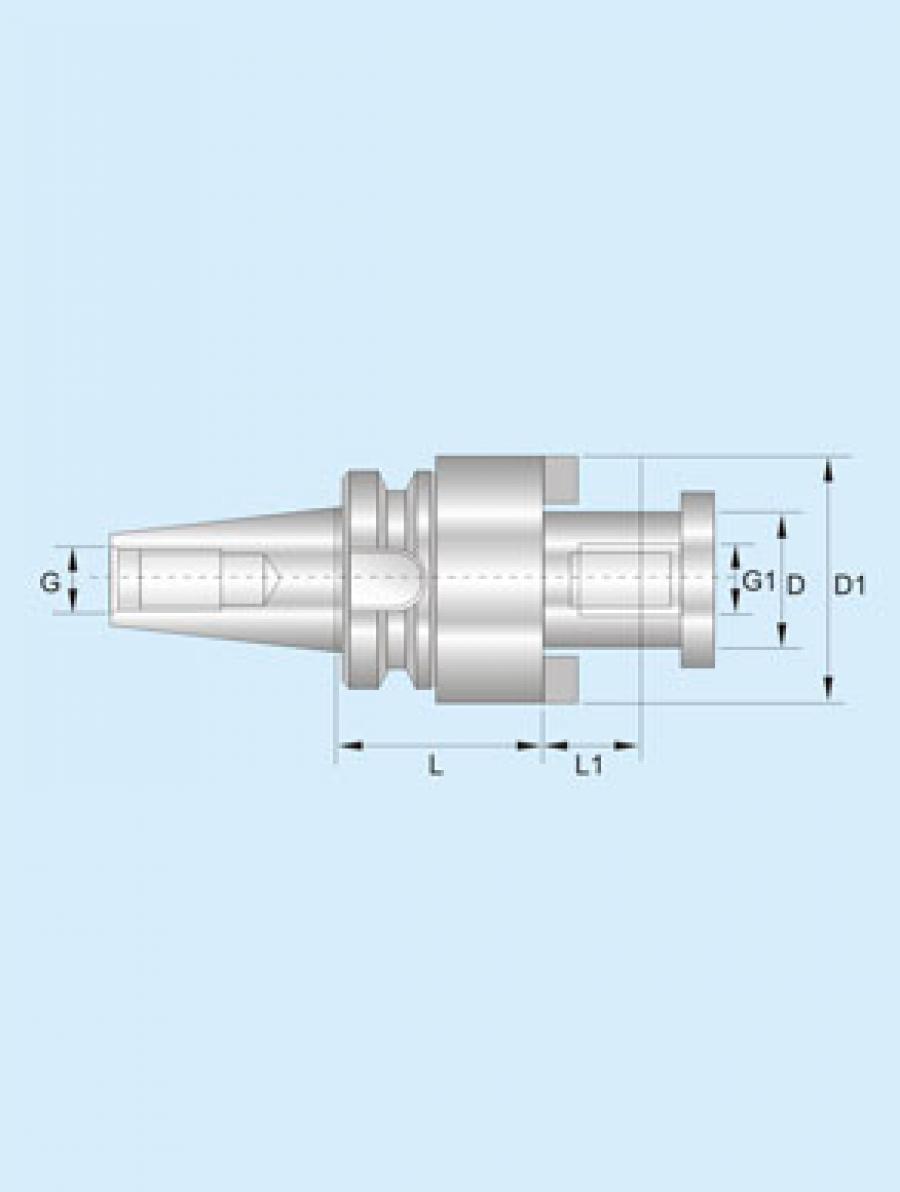

Ordering No. | TYPE | D | D1 | L | L1 | G | G1 |
---|---|---|---|---|---|---|---|
280515 | BT 30 / FMB 16 x 045 | 16 | 40 | 45 | 17 | M 12 | M 8 |
280520 | BT 30 / FMB 22 x 047 | 22 | 45 | 47 | 19 | M 12 | M 10 |
280525 | BT 30 / FMB 27 x 050 | 27 | 63 | 50 | 21 | M 12 | M 12 |
280530 | BT 40 / FMB 22 x 055 | 22 | 45 | 55 | 19 | M 16 | M 10 |
280535 | BT 40 / FMB 27 x 060 | 27 | 63 | 60 | 21 | M 16 | M 12 |
280540 | BT 40 / FMB 27 x 090 | 27 | 63 | 90 | 21 | M 16 | M 12 |
280545 | BT 40 / FMB 32 x 060 | 32 | 78 | 60 | 24 | M 16 | M 16 |
280550 | BT 40 / FMB 32 x 090 | 32 | 78 | 90 | 24 | M 16 | M 16 |
280555 | BT 40 / FMB 40 x 060 | 40 | 90 | 60 | 27 | M 16 | M 20 |
280560 | BT 40 / FMB 40 x 075 | 40 | 90 | 75 | 27 | M 16 | M 20 |
280565 | BT 50 / FMB 27 x 045 | 27 | 63 | 45 | 21 | M 24 | M 12 |
280570 | BT 50 / FMB 27 x 090 | 27 | 63 | 90 | 21 | M 24 | M 12 |
280575 | BT 50 / FMB 27 x 150 | 27 | 63 | 150 | 21 | M 24 | M 12 |
280580 | BT 50 / FMB 32 x 060 | 32 | 78 | 60 | 24 | M 24 | M 16 |
280585 | BT 50 / FMB 32 x 090 | 32 | 78 | 90 | 24 | M 24 | M 16 |
280590 | BT 50 / FMB 40 x 060 | 40 | 90 | 60 | 27 | M 24 | M 20 |
280595 | BT 50 / FMB 40 x 075 | 40 | 90 | 75 | 27 | M 24 | M 20 |
280600 | BT 50 / FMB 40 x 105 | 40 | 90 | 105 | 27 | M 24 | M 20 |
