EXTENSION ADAPTERS

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTIC
  • Extended boring depths are possible with the use of these Intermediate Adapter. They can be used independently or in combination, depending on the desired depth of bore. When used in combination, they achieve the same degree of rigidity as found in a solid bar. This is due to a 1/2 degree dish on the shoulder that allows full contact at the perimeter.

Need Expert Advice
-Call us-

+ 91 11 43118888

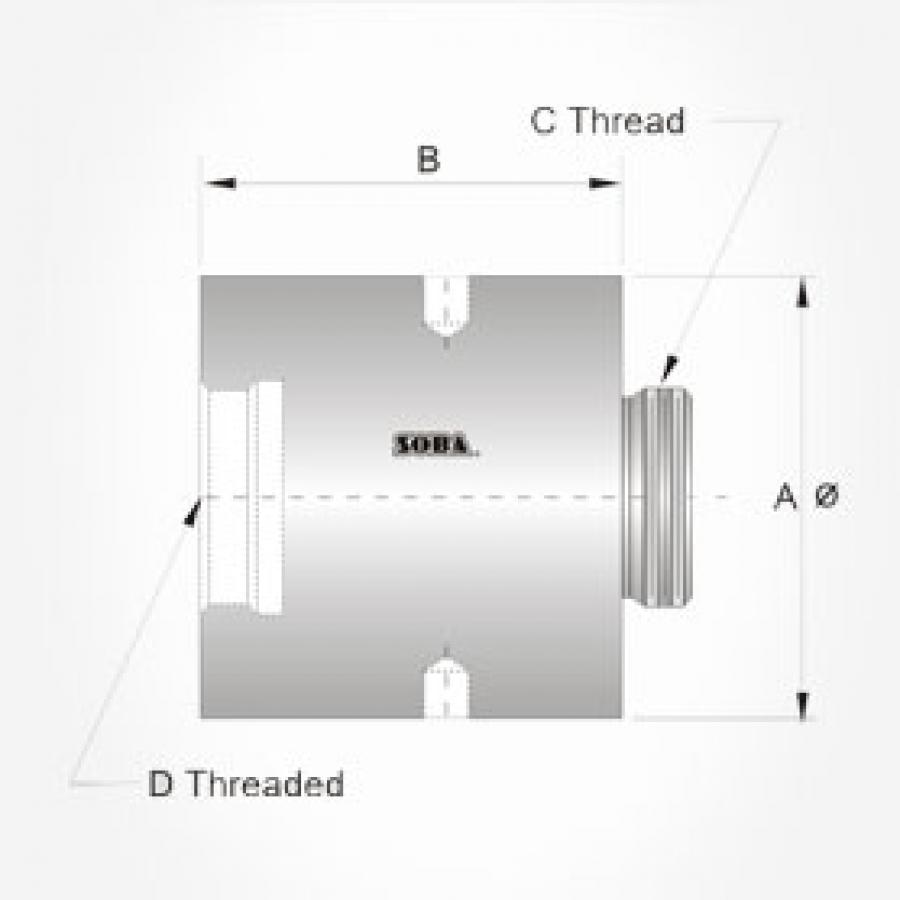

Technical Data

Ordering No. A B C D
  Inch mm Inch mm
170510 1 25 2 50 7/8 x 20 7/8 x 20
170520 1-3/8 35 2 50 7/8 x 20 7/8 x 20
170530 2 50 2 50 1-1/2 x 18 7/8 x 20
170540 3 75 2-1/2 62 1-1/2 x 18 1-1/2 x 18
170550 4 100 3 75 1-1/2 x 18 1-1/2 x 18
