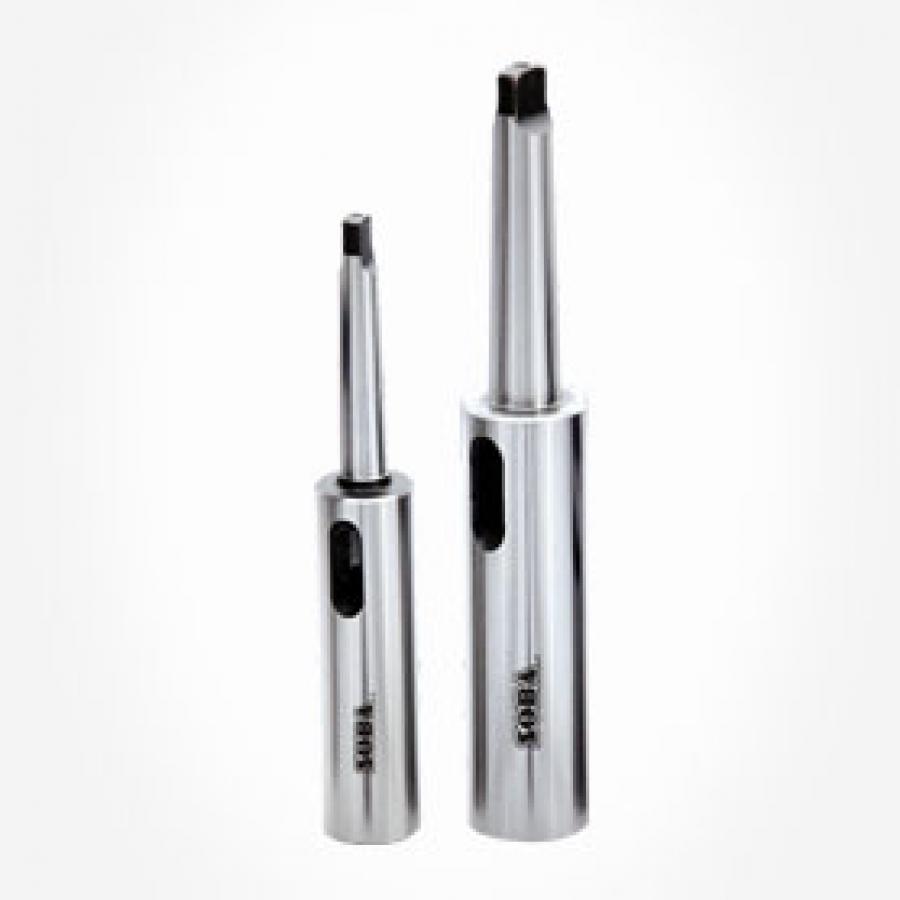

EXT. SOCKETS AS PER DIN 2187

Add to Enquiry Bag

Enquire Now

Features

  • Useful for extending the length of taper shank tools. Also used as adapters to fit Morse Taper shank tools to larger sockets and larger morse taper tools to smaller sockets. Manufactured from case hardened steel, precision ground inside and outside.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Outside Inside Overall Length Overall length
      Inch mm
200200 1 1 5-3/4 145
200202 1 2 6-3/8 160
200204 2 1 6-3/8 160
200206 2 2 7 175
200208 2 3 7-3/16 196
200210 3 1 7 175
200212 3 2 7-3/4 194
200214 3 3 8-19/32 215
200216 3 4 9-19/32 240
200218 4 1 10-19/32 200
200220 4 2 12 215
200222 4 3 9-1/4 240
200224 4 4 10-19/32 265
200226 4 5 12 300
200228 5 1 9-1/4 232
200230 5 2 9-7/8 247
200232 5 3 10-11/16 268
200234 5 4 12 300
200236 5 5 13-3/18 335
200238 6 4 14-3/16 355
