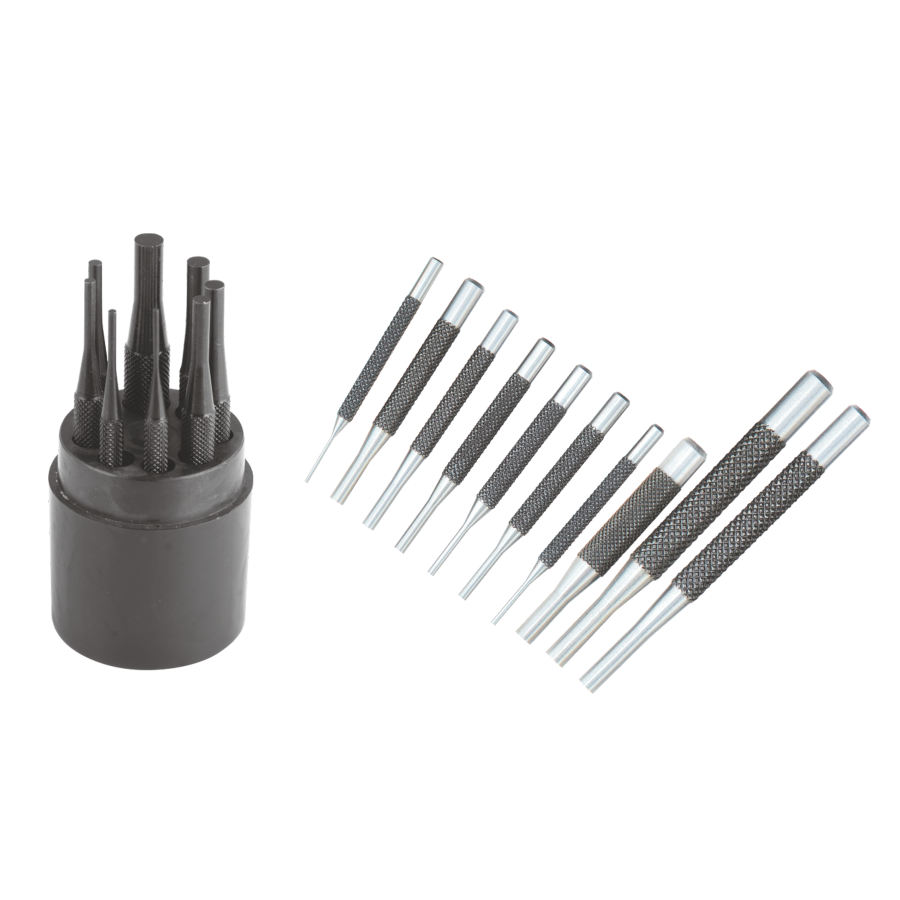

DRIVE PIN PUNCH

Add to Enquiry Bag

Enquire Now

Features

Made from steel, hardened and tempered. Knurled grip for better holding and tips are ground finish.
SETS Contents
•  Set No. 180502  Set of 4Pcs (180505, 180507, 180509, 180511) Wt. Kg. 0.100
•  Set No. 180504  Set of 4Pcs  (180513, 180515, 180517, 180519) Wt. Kg. 0.200
•  Set No. 180500   Set of 8Pcs   (180505, 180507, 180509, 180511, 180513, 180515, 180517, 180519) Wt. Kg. 0.400
•  Set No.. 180501 Set of 9Pcs  (180505, 180507, 180509, 180511, 180513, 180515, 180517, 180521, 180523) Wt. Kg. 0.435

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering Size Wt.
No. Tip Length Body Dia Kg.
Inch mm Inch mm Inch mm
180505 1/16 1.5 4 100 1/4 6.0 0.020
180507 3/32 2.5 4 100 1/4 6.0 0.020
180509 1/8 3.0 4 100 13/32 9.0 0.030
180511 5/32 4.0 4 100 13/32 9.0 0.030
180513 3/16 5.0 4 100 13/32 9.0 0.040
180515 7/32 5.5 4 100 13/32 9.0 0.040
180517 1/4 6.0 4 100 13/32 9.0 0.045
180519 5/16 8.0 4 100 3/8 10 0.075
180521 5/16 8.0 6 150 1/2 12.7 0.100
180523 3/8 9.5 6 150 1/2 12.7 0.110
