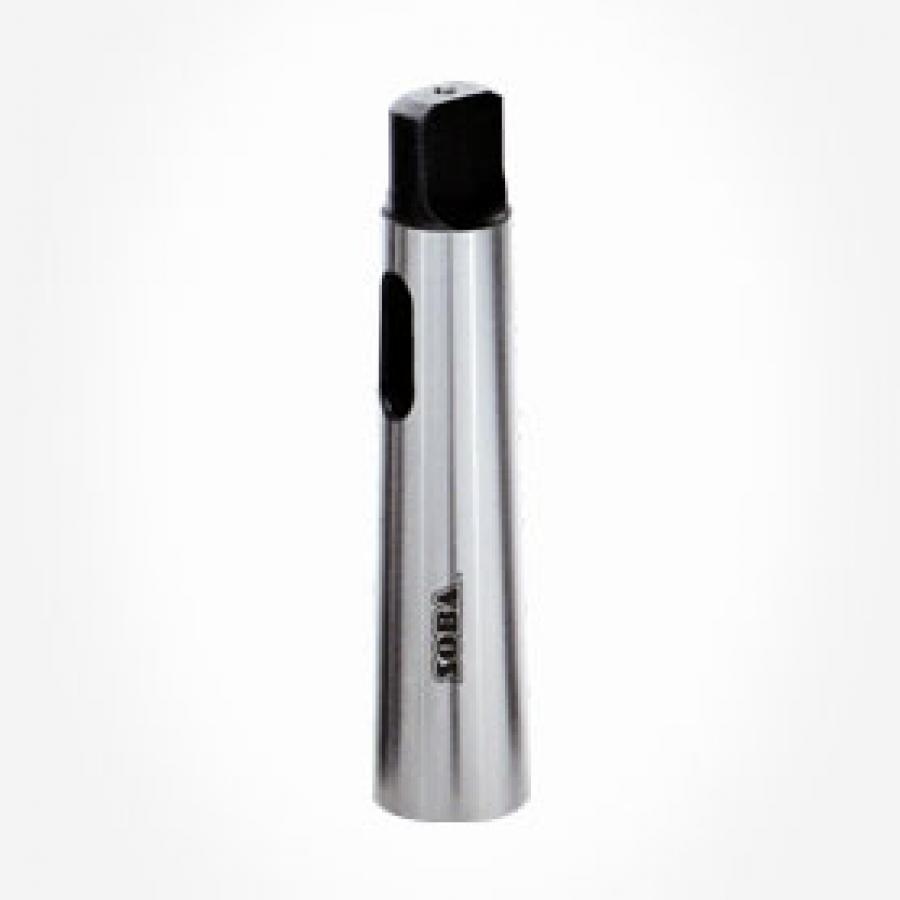

DRILL SLEEVES AS PER DIN 2185

Add to Enquiry Bag

Enquire Now

Features

  • Drill sleeves or reduction sleeves as the name suggests are used to adapt smaller Morse Taper shank size tools for use on machines spindles of larger sizes. The sleeves have a precise concentricity and taper for allowing an exact matching with the tool held. Available in Workshop and A grade. Workshop grade Manufactured from Carbon steel fully ground on the outside and having a reamed finish on the inside. Hardened Tang. A Grade These are manufactured from case hardened high tensile steel (20MnCr5 equivalent to SAE8620)Fully hardened and ground on outside and inside. Hardened Tang.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Grade A. Ordering No. Workshop Grade Outside Inside Overall Length Overall length
        Inch mm
200010 200011 2 1 3-5/8 91
200012 200013 3 1 4 100
200014 200015 3 2 4-7/16 112
200016 200017 4 1 5 125
200018 200019 4 2 5 125
200020 200021 4 3 5-9/16 140
200022 200023 5 1 6-1/4 156
200024 200025 5 2 6-1/4 156
200026 200027 5 3 6-1/4 156
200028 200029 5 4 6-13/16 171
200030 200031 6 2 8-11/16 218
200032 200033 6 3 8-11/16 218
200034 200035 6 4 8-11/16 218
200036 200037 6 5 8-11/16 218
