DIVIDING MECHANISM

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTICS
  • SOME POSSIBLE USES OF A DIVIDING MECHANISM
  • Cutting gears
  • Machining hex or square on a shaft
  • Drilling holes equal distance around a circle eg holes in a flywheel
  • Used as an adjustable angle plate - eg machine one face then rotate 90° degrees and machine the next face
  • Milling a radius or an arc
  • Create wheels with spokes by using the rotary table to machine out the triangular shaped holes in a wheel

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Major dimension of DM Weight Shipping
Measurement ft		 Indexing
Plates		 Suitable for

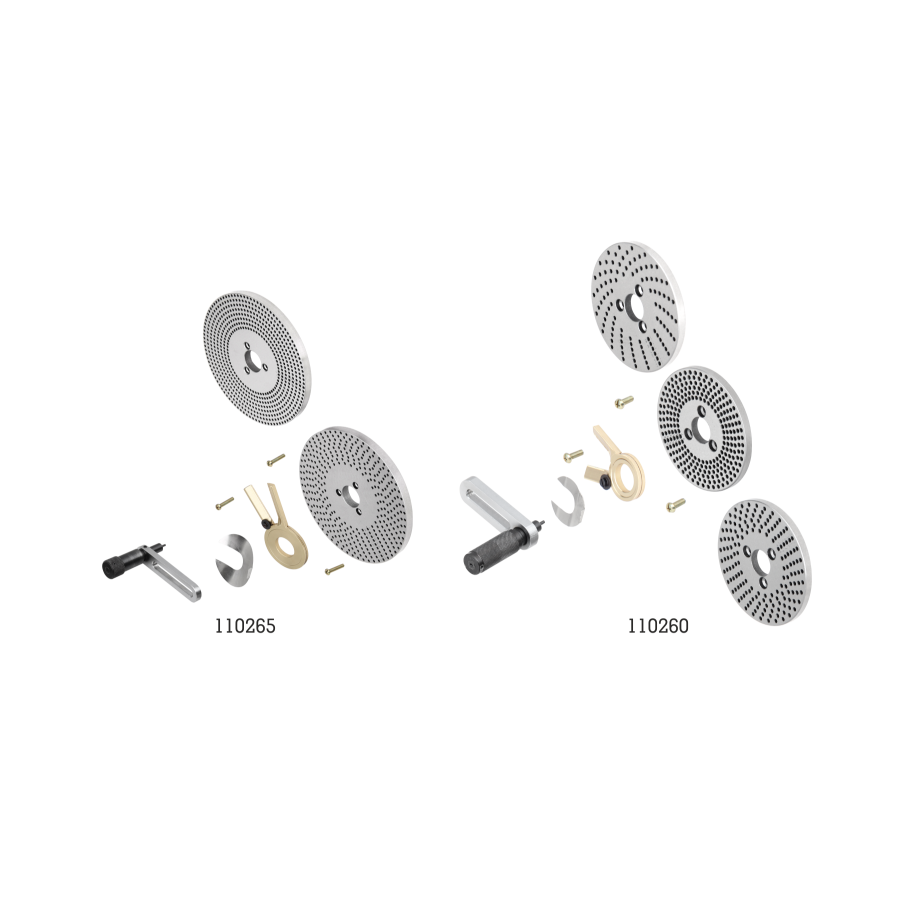

Dividing plate
set screw		 Inner diameter
of sector arm		 Outer diameter
of spring clip		 Grove width
in handle plate
Inch mm Inch mm Inch mm Kg lb
110260 PCD. 32 1.26Ø 0.83 21 0.71 18 0.03 9 2.5 5.51 0.12 3 110239, 110241,
110242, 111325, 111335
110265 (3holes) PCD. 46 1.81 1.12 28.7 1.73 44 0.39 10 4 8.82 0.12 2 110243, 110244
110270 (3holes) PCD. 46 1.81 1.12 28.7 1.73 44 0.39 10 4 8.82 0.12 2 110245
