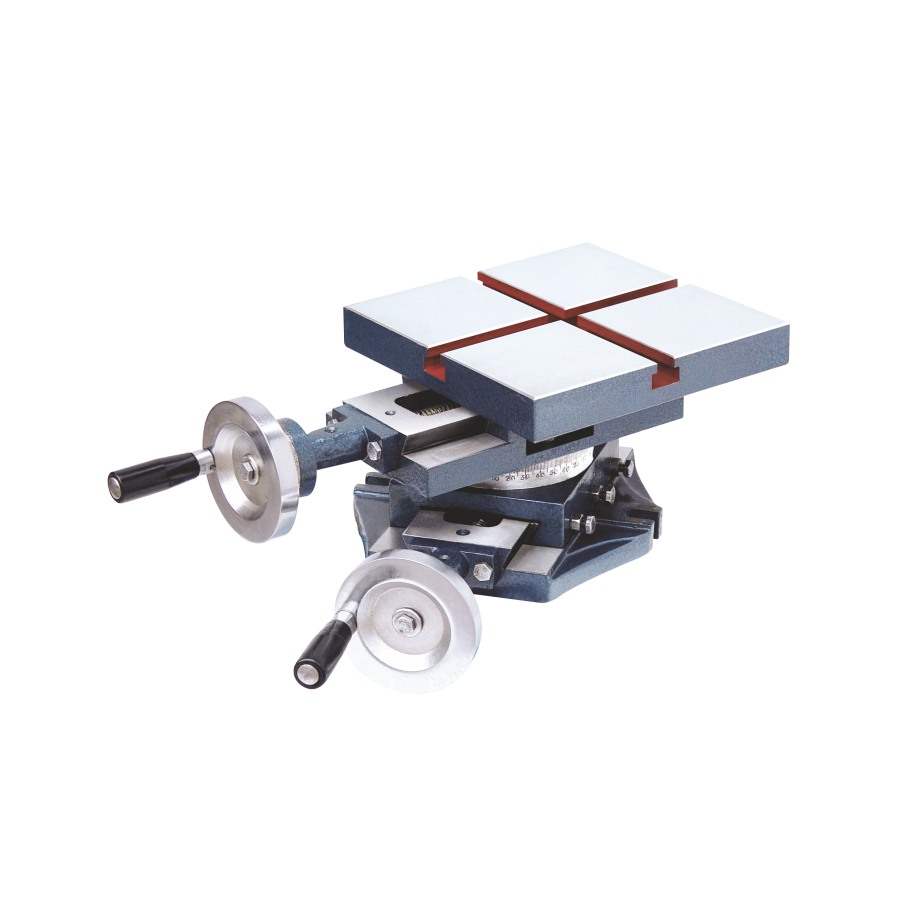

Enquire NowProduced from Close grained Cast iron with the castings stress relived. All SOBA cross slide tables have tops precision ground to an accuracy of 0.001†(0.025mm ) Total indicator reading dials are graduated in 0.001†increments with a wheel handle at the ends of the table top, positioning may be performed from either side.
| Ordering No. | Size of Tables | Height | Cross Sliding | Longitudinal sliding | T Slot Sizes | Wheel Calibration° | Net Weight Kgs. |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | Degree | ||
| 110340 | 6 x 6 | 150 x 150 | 5.1/8 | 130 | 5 | 125 | 5 | 125 | 1/2 | 12 | .001 | 90 | 14.00 |
| 110345 | 8 x 8 | 200 x 200 | 6 | 150 | 5 | 125 | 5 | 125 | 1/2 | 12 | .001 | 90 | 20.00 |
| 110350 | 6 x 12 | 150 x 300 | 6 | 150 | 8 | 200 | 8 | 200 | 1/2 | 12 | .001 | 90 | 33.00 |
| 110355 | 8 x 12 | 200 x 300 | 6 | 150 | 8 | 200 | 8 | 200 | 1/2 | 12 | .001 | 90 | 35.00 |
| 110360 | 12 x 12 | 300 x 300 | 6 | 150 | 8 | 200 | 8 | 200 | 1/2 | 12 | .001 | 90 | 40.00 |
