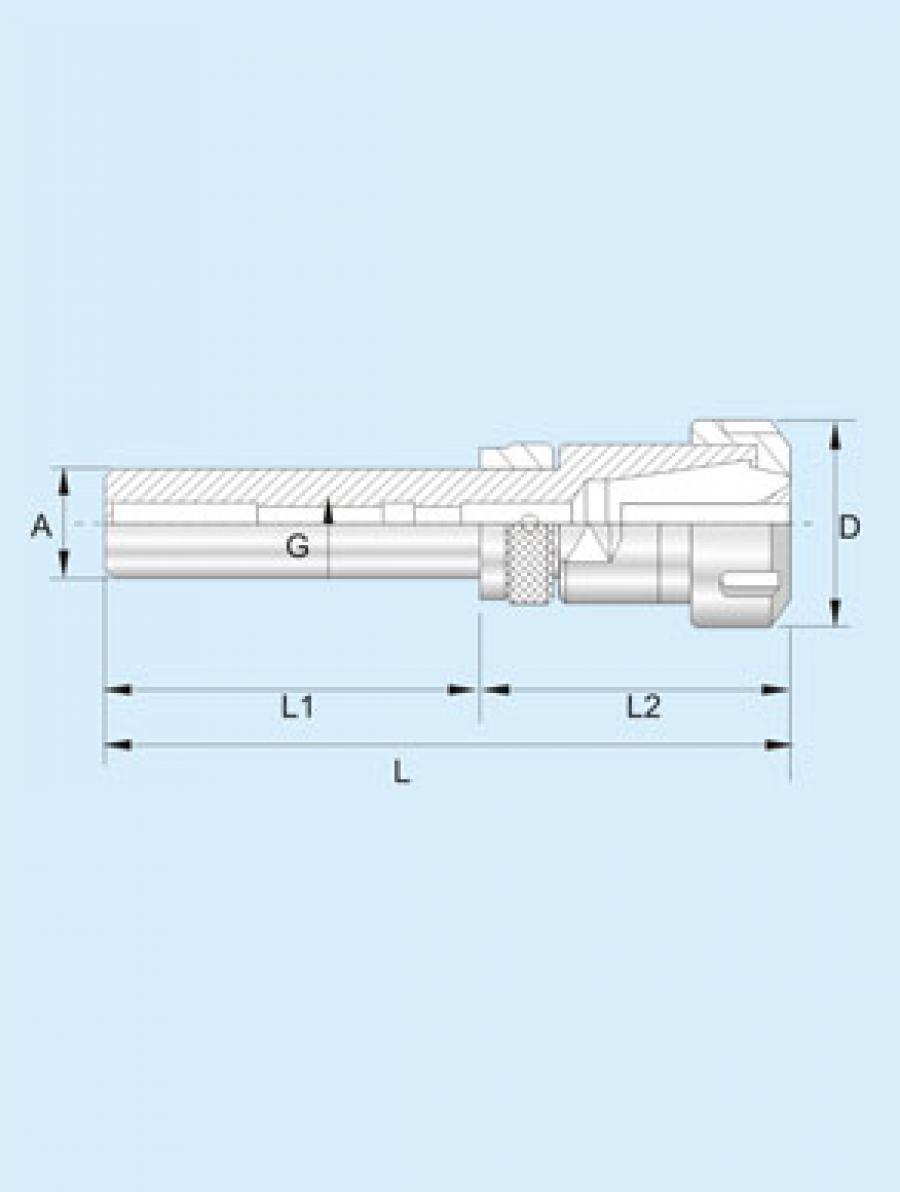

| Ordering No. | TYPE A x D - L1 mm |
L mm |
L2 mm |
G |
|---|---|---|---|---|
| 286100 | A16 x ER16A - 50 | 90 | 40 | M5 x 0.8P |
| 286105 | A16 x ER16A - 150 | 190 | 40 | M5 x 0.8P |
| 286110 | A20 x ER16A - 50 | 85 | 40 | M10 x 1.5P |
| 286115 | A20 x ER20A - 60 | 100.5 | 41.5 | M12 x 1.75P |
| 286120 | A20 x ER25A - 100 | 151 | 51 | M12 x 1.75P |
| 286125 | A20 x ER32A - 100 | 151.5 | 51.5 | M12 x 1.75P |
| 286130 | A25 x ER25A - 50 | 101 | 51 | M12 x 1.75P |
