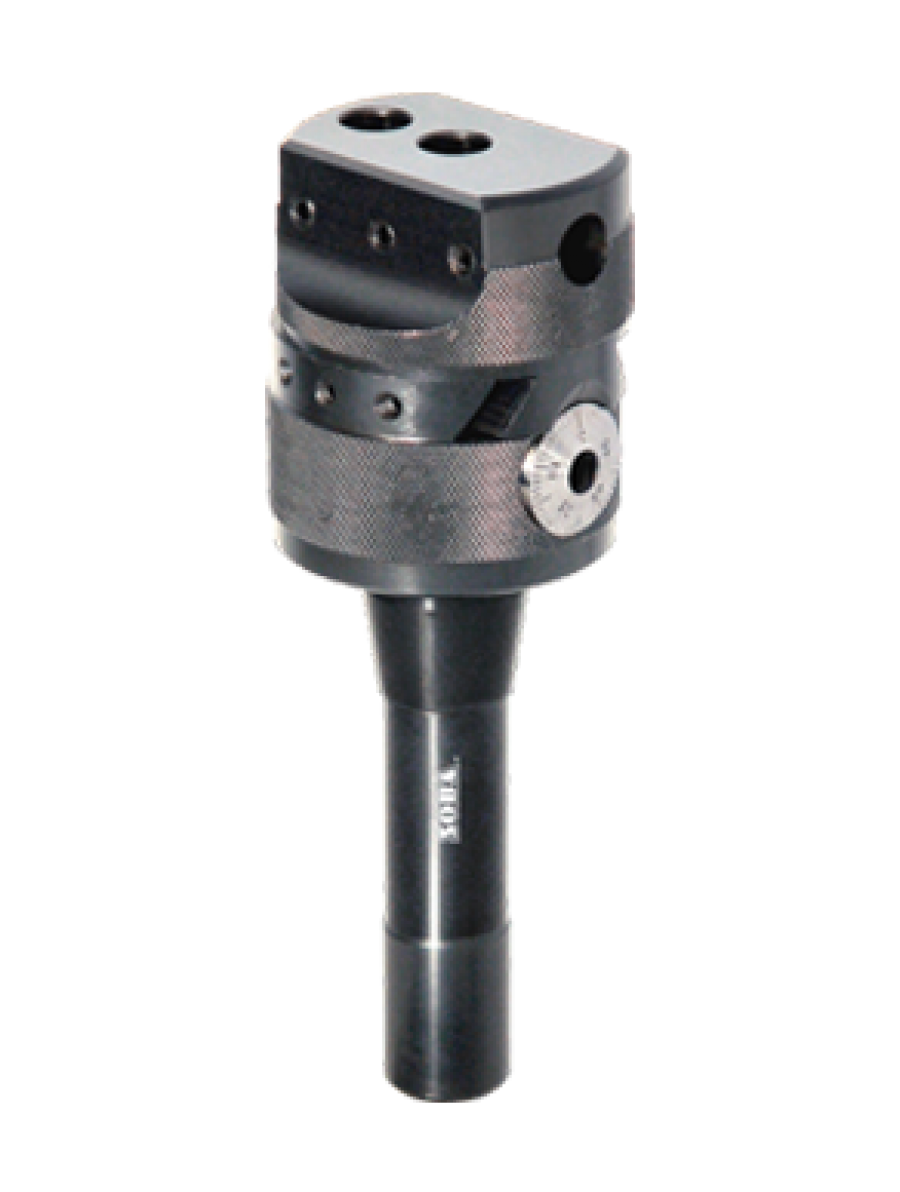

BORING HEADS WITH INTEGRATED SHANK

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTIC
  • This Boring Head has a single piece ruggrd construction for a smooth and chatterless operation, Hardened Slide with a black oxide finish Available in R8 and straight shanks.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering
No.		 Boring
Head Dia.		 Overall
Length		 Boring
Bar Hole		 Centre
Distance
Between Hole		 Cross Hole
Size Ø		 Slide Radial
Travel		 Minimum
Bore		 Maximum
Bore		 SHANK Net.Weight
Kg.
  Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
170140 2-1/2 63 3-3/16 80 1/2 12 3/4 19 1/2 12 3/4 19 5/16 8 5 125 R8 2
170150 2-1/2 63 3-3/16 80 5/8 16 3/4 19 5/8 16 3/4 19 3/8 10 5 125 R8 2
170160 2-1/2 63 3-3/16 80 1/2 12 3/4 19 1/2 12 3/4 19 5/16 8 5 125 20 Ø 2
