AXIAL SUPPORT

Add to Enquiry Bag

Enquire Now

Features

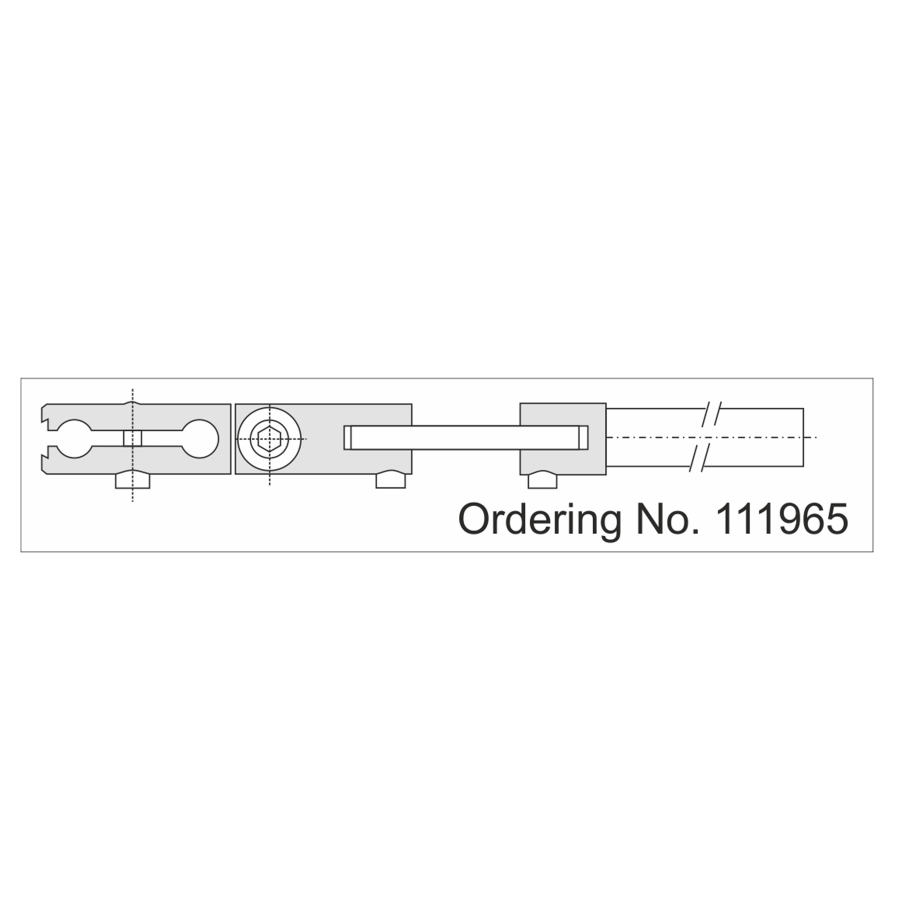

This axial support shown in the is 5-1/4" long and swivels at two points. The two joints allow for multiple positioning. One end has the dovetail attachment and an opening for the Interapid 4mm stem. An allen wrench is used to tighten the clamp. The other end has a mounting rod which can be gotten in two different diameters as follows: 3/8" Ø rod, 6mm Ø rod

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Type Shank Dia Length Wt. Kg.
111965 Reg 9.5mm (3/8") 140mm 0.06
111966 Off Center Dov. 6mm 75mm 0.04
111967 Off Center Dov. 9.5mm (3/8") 125mm 0.06
