| Ordering No. |

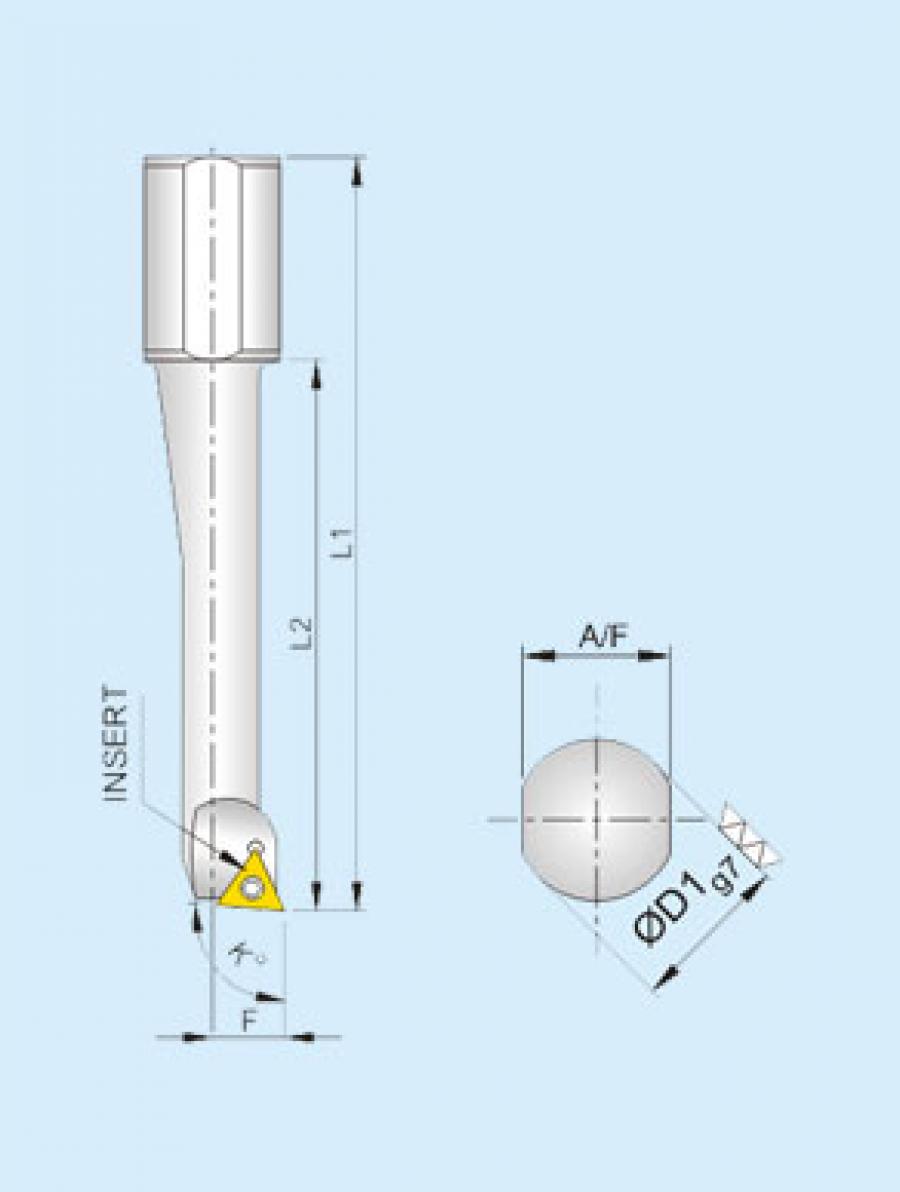

TYPE | -H Ø D1 | F | L1 | L2 | K0 | A/F | INSERT | Set No. |
|---|---|---|---|---|---|---|---|---|---|
| 742101 | A10 C06 | Ø 10 | 5.0 | 85 | 10 | 95° | 9.0 | CCMT 0602 - | 742100 |
| 742102 | A 12 T11 | Ø 10 | 6.0 | 95 | 12 | 90’ | 9.0 | TCMT 1102 - | |
| 742103 | A 16 T11 | Ø 10 | 8.0 | 105 | 16 | 90’ | 9.0 | TCMT 1102 - | |
| 742104 | R 75 C06 | Ø 10 | 9.0 | 60 | 10 | 90’ | 9.0 | CCMT 0602 - | |
| 742121 | B 10 C06 | Ø 12 | 5.0 | 85 | 10 | 95° | 11.0 | CCMT 0602 - | 742120 |
| 742122 | B 12 T11 | Ø 12 | 6.0 | 95 | 12 | 90’ | 11.0 | TCMT 1102 - | |
| 742123 | B 16 T11 | Ø 12 | 8.0 | 105 | 16 | 90’ | 11.0 | TCMT 1102 - | |
| 742124 | R 100 C06 | 12 | 13.0 | 72 | 10 | 90° | 18.0 | TCMT 1102 - | |
| 742201 | D 10 C06 | Ø 20 | 10.0 | 85 | 10 | 95° | 18.0 | CCMT 0602 - | 742200 |
| 742202 | D 12 T11 | Ø 20 | 6.0 | 95 | 12 | 90’ | 18.5 | TCMT 1102 - | |
| 742203 | D 16 T11 | Ø 20 | 8.0 | 105 | 16 | 90’ | 18.5 | TCMT 1102 - | |
| 742204 | D 20 T11 | Ø 20 | 10.0 | 135 | 20 | 90’ | 18.5 | TCMT 1102 - | |
| 742205 | R 125 C09 | 20 | 19.0 | 123 | 15 | 90’ | 18.5 | CCMT 09T3 - | |
| 742251 | E 12 T11 | Ø 25 | 6.0 | 95 | 12 | 90’ | 23.5 | TCMT 1102 - | 742250 |
| 742252 | E 16 T11 | Ø 25 | 8.0 | 105 | 16 | 90’ | 23.5 | TCMT 1102 - | |
| 742253 | E 20 T11 | Ø 25 | 10.0 | 135 | 20 | 90’ | 23.5 | TCMT 1102 - | |
| 742254 | E 25 T11 | Ø 25 | 12.5 | 160 | 25 | 90’ | 23.5 | TCMT 1102 - | |
| 742255 | R 150 C09 | 25 | 22.0 | 134 | 15 | 90’ | 23.5 | CCMT 09T3 - |
