DETAIL FOR AXIAL & RADIAL BORING BAR SETS
Ordering No. | Sizes of Shanks |
No. of Pcs. in Sets | ||
---|---|---|---|---|
mm | Inch | mm | Inch | |
742100 | 942100 | 10 | 3/8 | 1 Pc. Radial Boring Bar 3 Pcs. Axial Boring Bar |
742120 | 942120 | 12 | 1/2 | 1 Pc. Radial Boring Bar 3 Pcs. Axial Boring Bar |
742160 | 942160 | 16 | 5/8 | 1 Pc. Radial Boring Bar 4 Pcs. Axial Boring Bar |
742200 | 942200 | 20 | 3/4 | 1 Pc. Radial Boring Bar 4 Pcs. Axial Boring Bar |
742250 | 942250 | 25 | 1 | 1 Pc. Radial Boring Bar 4 Pcs. Axial Boring Bar |

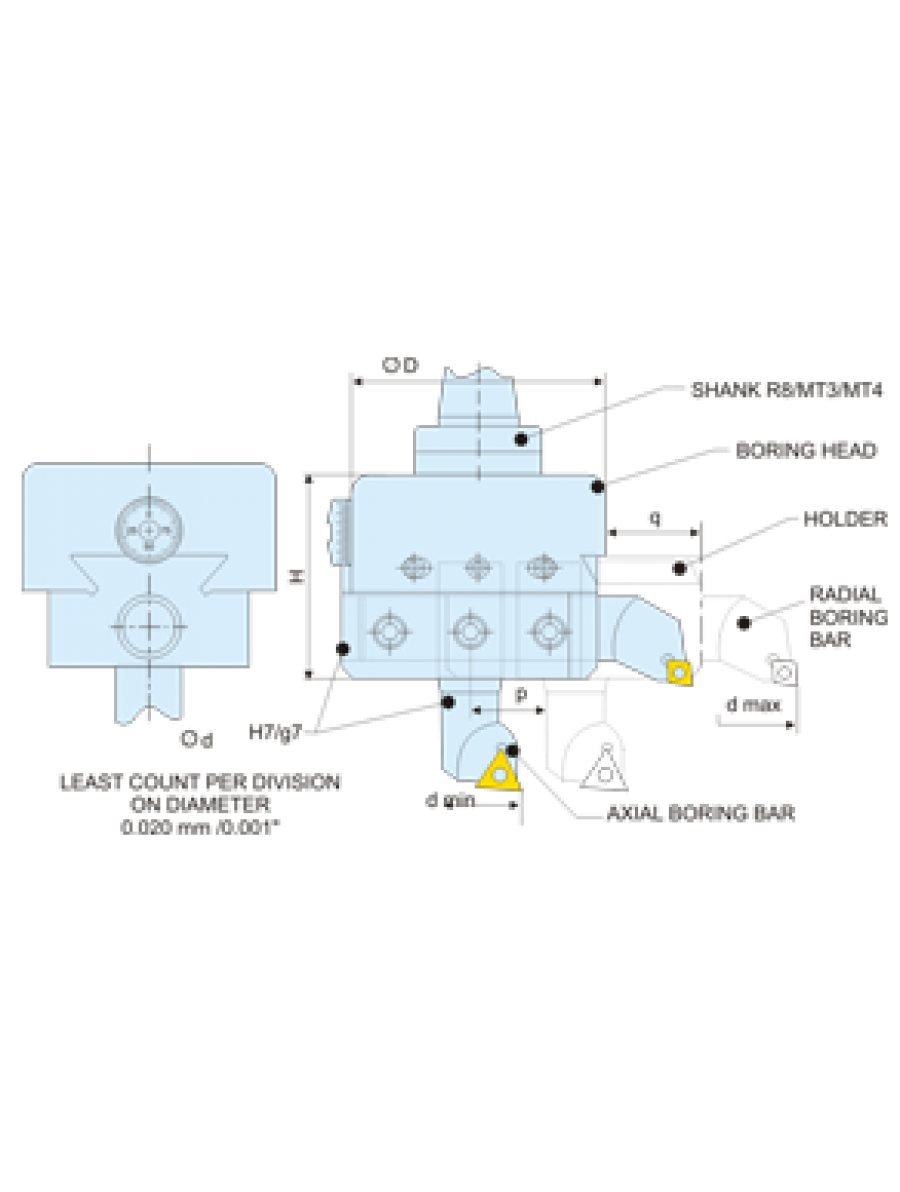

TECHNICAL DETAIL OF SOBA PRECISION BORING HEAD
Ordering No. |
Boring Head Dia. |
Overall Length |
Boring Bar Hole |
Centre Distance Between Hole |
Cross Hole Size Ø |
Slide Radial Travel |
Minimum Bore |
Maximum Bore |
Mounting Thread |
Least Count (Microns) |
Net. Weight Kg. |
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metric | Imperial | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | |||
170050 | 170049 | 1-3/16 | 30 | 1-9/16 | 40 | 1/4 | 6 | 3/8 | 9 | 1/4 | 6 | 5/16 | 8 | 1/4 | 6 | 1-3/4 | 45 | 10 x 1.5 (mm) | .001 | 0.02 | 0.300 | |
170060 | 170059 | 1-1/2 | 38 | 1-3/4 | 45 | 5/16 | 8 | 7/16 | 11 | 5/16 | 8 | 7/16 | 11 | 5/16 | 8 | 2-3/8 | 60 | 14 x 1 (mm) | .001 | .002 | 0.400 | |
170070 | 170069 | 1-3/4 | 45 | 2 | 50 | 3/8 | 10 | 19/32 | 15 | 3/8 | 10 | 5/8 | 16 | 3/8 | 10 | 3-3/16 | 80 | 7/8 x 20 (Inch) | .001 | .002 | 0.700 | |
170080 | 170079 | 2 | 50 | 2-3/8 | 60 | 3/8 | 10 | 5/8 | 16 | 3/8 | 10 | 3/4 | 19 | 3/8 | 10 | 4 | 100 | 7/8 x 20 (Inch) | .001 | .002 | 1.250 | |
170090 | 170089 | 2 | 50 | 2-3/8 | 60 | 1/2 | 12 | 5/8 | 16 | 1/2 | 12 | 3/4 | 19 | 3/8 | 10 | 4 | 100 | 1-1/2 x 18 (Inch) | .001 | .002 | 1.250 | |
170100 | 170099 | 3 | 75 | 3-3/16 | 80 | 3/4 | 20 | 15/16 | 24 | 3/4 | 20 | 1 | 25 | 3/8 | 10 | 9 | 220 | 1-1/2 x 18 (Inch) | .001 | .002 | 2.800 | |
170110 | 170109 | 4 | 100 | 3-3/4 | 95 | 1 | 25 | 1 | 25 | 1 | 25 | 1-5/8 | 41 | 3/8 | 10 | 10 | 250 | 1-1/2 x 18 (Inch) | .001 | .002 | 4.400 |
