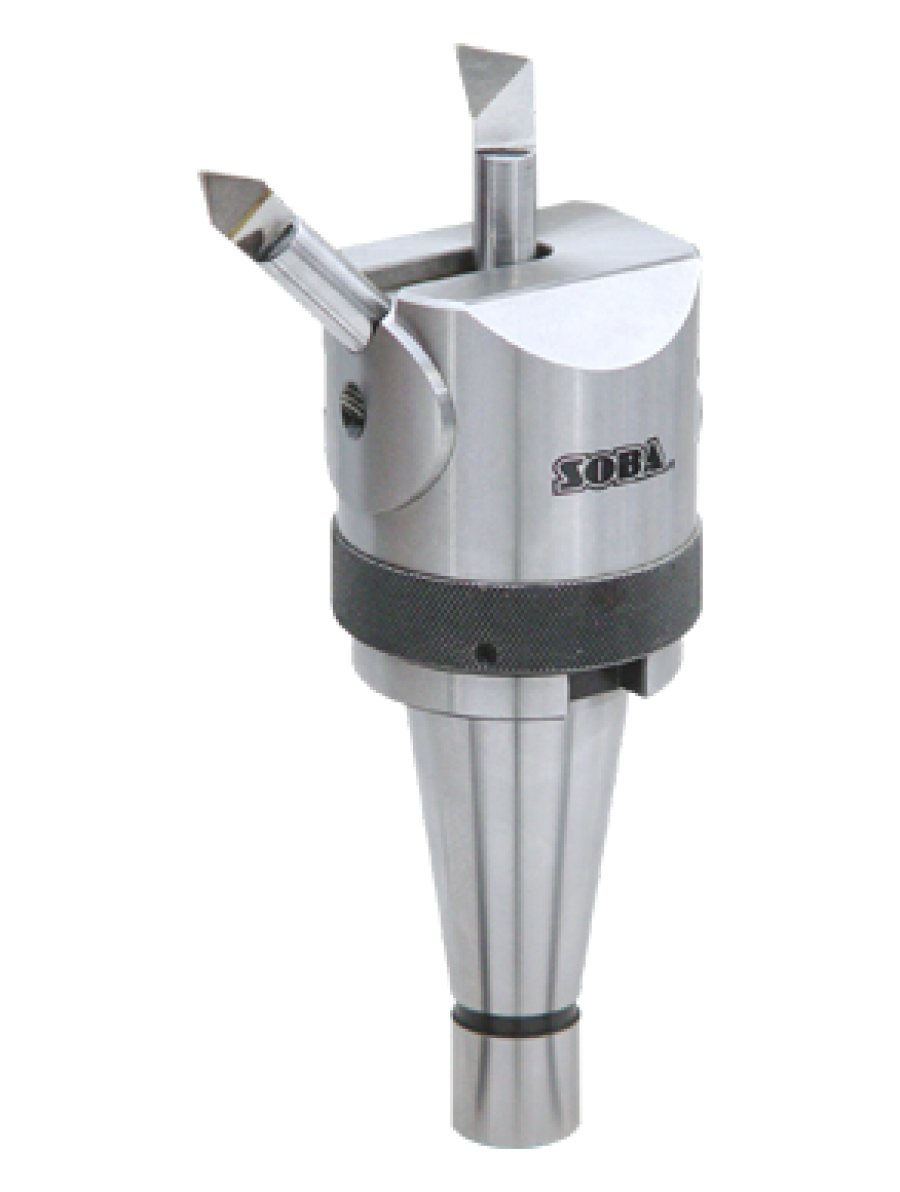

AUTOMATIC BORING CUM FACING HEADS

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTIC
  • Automatic Boring and Facing Head Designed with simplicity of construction and operation in mind, This Boring head is very rigid in construction, with very little backlash in the tool carrier due to extra large slide ways. Has a Boring capacity of 250mm. Takes 12mm boring tool sizes.
  • Set Consists of the following
  • Boring Head Dia 68mm
  • ISO 40 shank
  • 2pc 12mm carbide Brazed tools

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering
No.		 Boring
Head Dia.		 Overall
Length		 Centre
Distance
Between Hole		 Cross Hole
Size Ø		 Offset Boring Capacity
Minimum		 Boring Capacity
Maximum		 Mounting Thread SHANKS Automatic
feed		 Net.Weight
Kg.
mm mm mm mm mm mm mm mm
171200 68 72 12 12 25 12 225 24x2 R8 or ISO 40 I 2.700
