AUTOMATIC BORING CUM FACING HEAD ADAPTABLE SHANKS

Add to Enquiry Bag

Enquire Now

Features

  • ADAPTABLE SHANKS:-

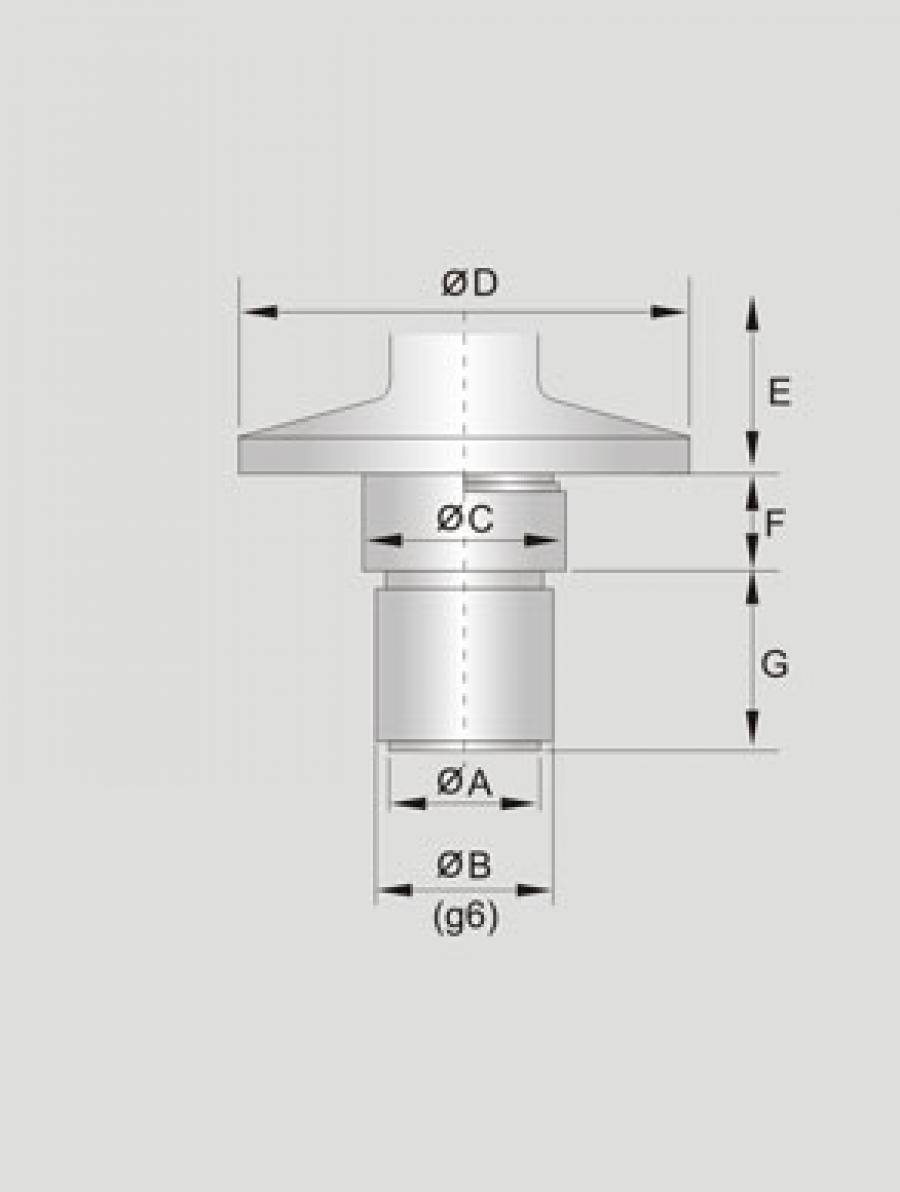

  • The adaptable shank is interchangeable on both types of boring heads of the same size. It is generally supplied with the equipment taking into account the specifications indicated at time of the order, but it can also be made by the user with the aid of the following table which gives the adaptable points of the shank in the body of the equipment.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Size of
the heads
A B C D E F G
    Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
60 Metric 18/150 ISO 3/4 19 29/32 23 1-23/32 42 3/8 9.5 3/8 9.5 15/16 24
90 Metric 24/200 ISO 1 25 1-7/16 36 2-5/16 58 17/32 13.1 17/32 13 15/16 24
